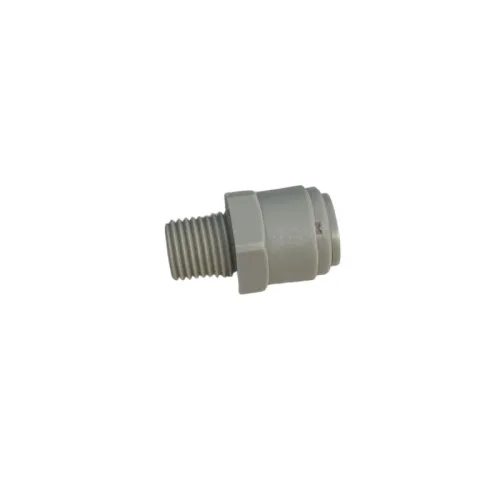

PLASTIC STRAIGHT TERMINAL FITTING

Code: TR3804
€3.30
VAT excluded: €2.70
Size : 3/8 THREAD 1/4
In stock 3 pieces in stock Ships in 24/48 hours

Description

Push-Fit Straight Adapter for Imperial Tube BSP 1/4 Thread


Push-fit straight adapter that connects an imperial tube to a female threaded port, with a 1/4 BSP male thread. Variants for 1/4 inch tube, code PI010812S, and 3/8 inch tube, code PI011212S, the latter with a special seal suited to bevelled-face ports. It is made by John Guest in grey acetal for tubes with an outside diameter in inches, suitable according to the manufacturer for air, inert gases, vacuum, drinking water and food liquids, with PE, nylon, PU or soft metal tubes. The permitted pressure is 16 bar at 20 °C and 10 bar at 65 °C; with air it can be used from -20 °C.

Technical Specifications

  • Type: Push-fit straight adapter
  • Tube: 1/4 or 3/8 inch, among the variants
  • Thread: 1/4 BSP male
  • Material: Grey acetal copolymer
  • Pressure: 16 bar at 20 °C, 10 bar at 65 °C
  • Certification: WRAS
  • Item No.: PI010812S / PI011212S
  • Brand: JOHN GUEST

Applications and Uses

  • Connecting imperial tubes to threaded components
  • Air and drinking water lines
  • Drink dispensers and water treatment

More details

Brand
SPIRALFLEX
Code
TR3804
Manufacturer code
380/4
