CAMOZZI TAP ART. 2819

Code: CL281914
€7.50
VAT excluded: €6.15
Size : 1/4"
In stock 12 pieces in stock Ships in 24/48 hours

Description

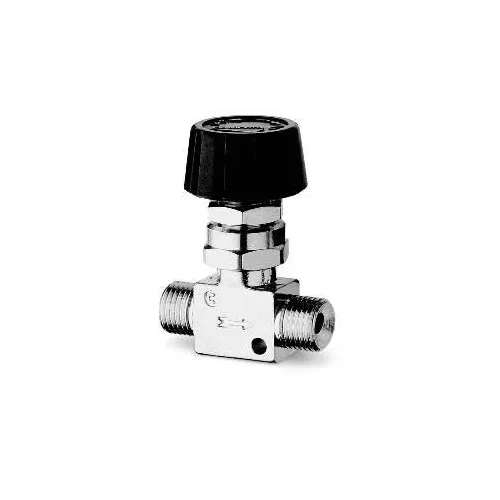

Bidirectional Flow Control Valve Camozzi Series 28 - Item No. 2819


Camozzi Mod. 2819 flow control valve, from the Series 28. It is not a ball valve but a bidirectional cone-type regulator: turning the engineering polymer handwheel progressively throttles the passage and meters the quantity of air, in both flow directions. It is made entirely of nickel-plated brass with NBR seals and is suitable for compressed air, water and mineral oil. For this model the catalogue provides for direct connection of plastic, copper or brass tubes with nut and olive of the Series 1000. Pressure from 0 to 10 bar, temperature from 0 to 80 °C. Variants with G1/4 or G1/8 ports.

Technical Specifications

  • Type: Bidirectional cone-type flow control valve
  • Series: 28
  • Ports: G1/4 or G1/8, among the variants
  • Adjustment: Engineering polymer handwheel
  • Materials: Nickel-plated brass, NBR seals
  • Operating pressure: 0 to 10 bar
  • Temperature: 0 to 80 °C (from -20 °C with dry air)
  • Fluids: Compressed air, water, mineral oil
  • Item No.: 2819
  • Brand: CAMOZZI

Applications and Uses

  • Adjusting the quantity of air on lines and users
  • Blowing, cooling and metered supply
  • Low-pressure water or oil circuits

More details

Brand
CAMOZZI
Code
CL281914
Manufacturer code
2819 1/4
