CAMOZZI TAP ART. 2839

Code: CL283912
€13.80
VAT excluded: €11.31
Size : 1/2"
In stock 3 pieces in stock Ships in 24/48 hours

Description

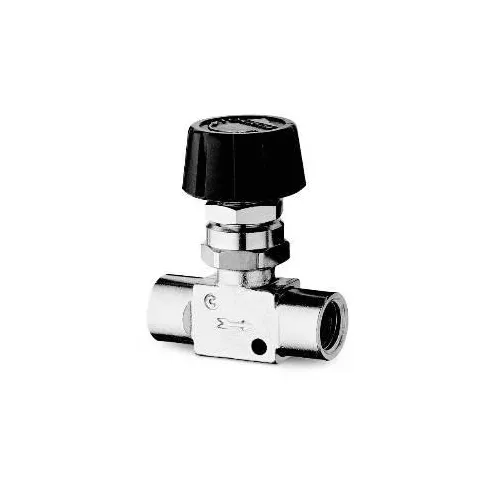

Bidirectional Flow Control Valve Camozzi Series 28 - Item No. 2839


Camozzi Mod. 2839 flow control valve, from the Series 28. It is not a ball valve but a bidirectional cone-type regulator: turning the engineering polymer handwheel progressively throttles the passage and accurately meters the quantity of air, in both flow directions, for example for a blast of air, cooling or supplying a user. It is made entirely of nickel-plated brass with NBR seals and is suitable for compressed air, water and mineral oil. It can be installed in any position. Pressure from 0 to 10 bar, temperature from 0 to 80 °C. Variants with G1/2 or G1/4 ports.

Technical Specifications

  • Type: Bidirectional cone-type flow control valve
  • Series: 28
  • Ports: G1/2 or G1/4, among the variants
  • Adjustment: Engineering polymer handwheel
  • Materials: Nickel-plated brass, NBR seals
  • Operating pressure: 0 to 10 bar
  • Temperature: 0 to 80 °C (from -20 °C with dry air)
  • Fluids: Compressed air, water, mineral oil
  • Item No.: 2839
  • Brand: CAMOZZI

Applications and Uses

  • Adjusting the quantity of air on lines and users
  • Metered blowing and cooling
  • Low-pressure water or oil circuits

More details

Brand
CAMOZZI
Code
CL283912
Manufacturer code
2839 1/2\"
