PVC TERMINAL TAILPIECE FITTING

Code: TRJTE415
€4.00
VAT excluded: €3.28
Size : 1/2"X15
In stock 31 pieces in stock Ships in 24/48 hours

Description

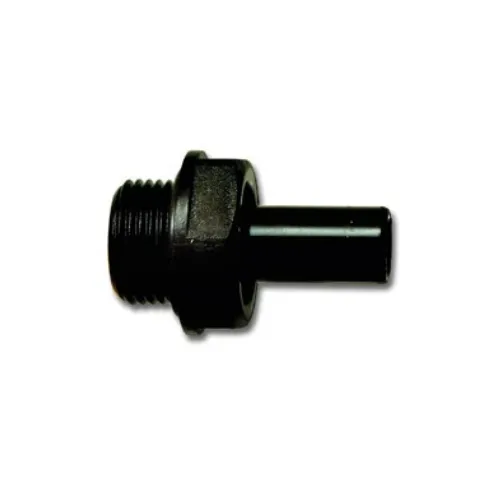

Spigot Terminal with Male Thread Spiralflex for Aluminium Pipe - Item No. JTE


Spiralflex JTE push-fit spigot terminal, among the acetal resin push-fit fittings supplied for anodised aluminium pipe air systems. No threading or tools are needed: the pipe is pushed into the fitting as far as the stop, the collet with stainless steel teeth holds it, and the harder it is pulled the tighter it grips, while an O-ring ensures the seal. The system with push-fit fittings works up to 10 bar. The JTE has a spigot to insert into push-fit fittings and a male thread to connect taps, filter units or components. Variants 1/2 x 15, 1/2 x 22 and 3/4 x 22.

Technical Specifications

  • Type: Spigot terminal with male thread
  • Dimensions: 1/2 x 15, 1/2 x 22, 3/4 x 22, among the variants
  • Material: Acetal resin
  • Connection: Push-in, stainless steel collet and O-ring
  • Maximum pressure with push-fit fittings: 10 bar
  • Item No.: JTE
  • Brand: SPIRALFLEX

Applications and Uses

  • Connecting taps and filter units to the line
  • Drops and take-off points
  • Air systems for workshops and laboratories

More details

Brand
SPIRALFLEX
Code
TRJTE415
Manufacturer code
JTE 415
