CAMOZZI AIR FITTING WITH SPRING 5058 MIGNON CONNECTION

Code: CL505886
€5.70
VAT excluded: €4.67
Size : 8/6
In stock 7 pieces in stock Ships in 24/48 hours

Description

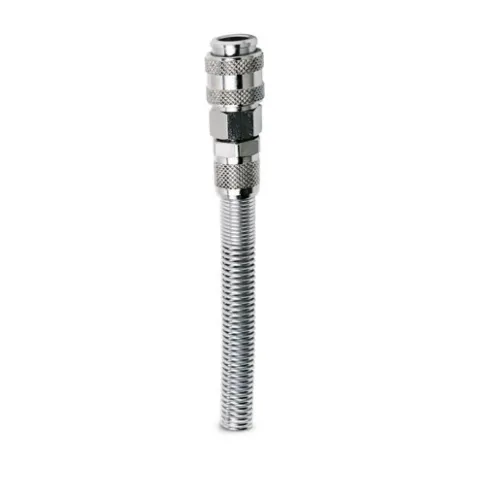

Spring Quick Coupling for 8/6 Tube Camozzi Mini Profile - Item No. 5058 8/6


Camozzi Mod. 5058 8/6 coupling with spring, from the Series 5000 of quick-connect couplings, Mini profile with 5 mm nominal diameter, compatible with Rectus Series 21-90 and Legris 21. It is the female socket, with a poppet quick-release valve, to be fitted at the end of an 8/6 mm plastic tube, in the spring version. Tools and lines are connected and disconnected without releasing the pressure. Nickel-plated brass body, NBR seals, pressure from -0.99 to 12 bar, temperature from 0 to 80 °C. Weight 54 g.

Technical Specifications

  • Type: Female quick coupling with spring
  • Profile: Mini (Mignon), nominal diameter 5 mm
  • Compatibility: Rectus Series 21-90, Legris 21
  • Tube: 8/6 mm
  • Valve: Quick-release, mushroom poppet
  • Materials: Nickel-plated brass, NBR seals
  • Operating pressure: -0.99 to 12 bar (nominal 6 bar)
  • Operating temperature: 0 to 80 °C (from -20 °C with dry air)
  • Weight: 54 g
  • Item No.: 5058 8/6
  • Brand: CAMOZZI

Applications and Uses

  • Air sockets on coiled or free hoses
  • Quick connection of guns and pneumatic tools
  • Workshops, body shops and production lines

More details

Brand
CAMOZZI
Code
CL505886
Manufacturer code
5058 8/6

Recommended accessories and spare parts

BRASS REINFORCEMENT BUSH

€0.44
AVAILABLE
Availability: 44 In stock

Spiralflex BOI internal reinforcing bush for plastic pipes connected with brass olive fittings: it supports the pipe from the inside during tightening. 10 and 12 mm sizes among the variants.

PVC PIPE CLAMP BF 15 DIA.15

€0.45
AVAILABLE
Availability: 114 In stock

Spiralflex BF pipe clamp for fixing compressed air system pipes to walls and ceilings: 15 and 22 mm sizes among the variants, with BD01 spacer available separately.

CAMOZZI FITTING ART. 2531

€0.56
AVAILABLE
Availability: 36 In stock

Camozzi Mod. 2531 1/8-M5 parallel reducer: G1/8 male and M5 female with through thread, in nickel-plated brass, to connect M5 micro components to a 1/8 port. Series 2000, weight 8 g.

CAMOZZI FITTING ART.2543

€2.64
AVAILABLE
Availability: 27 In stock

Camozzi Mod. 2543 socket: two equal parallel G female ports, in nickel-plated brass, to join two nipples or components with male threads. Series 2000. Sizes 1/8, 1/4, 3/8 and 1/2 among the variants.
