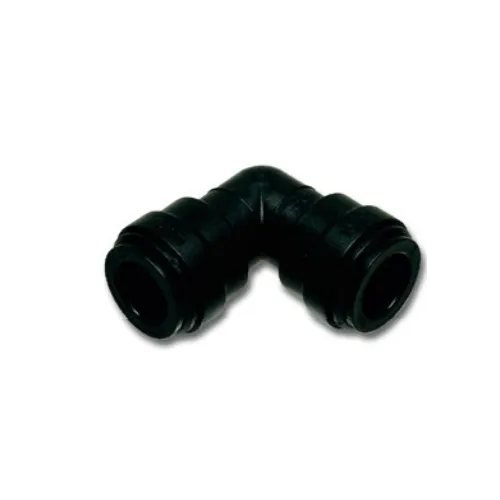

PVC INTERMEDIATE ELBOW FITTING

Code: TRJGI15
€6.00
VAT excluded: €4.92
Size : D. 15
In stock 12 pieces in stock Ships in 24/48 hours

Description

Intermediate Elbow Push-Fit Fitting Spiralflex for Aluminium Pipe - Item No. JGI


Spiralflex JGI intermediate elbow push-fit fitting, from the series of acetal resin push-fit fittings for compressed air lines in anodised aluminium pipe. It is fitted by hand: the pipe, marked at the depth indicated by the manufacturer, enters as far as the end stop, where the collet with stainless steel teeth grips it and the O-ring seals on the outside diameter. With these fittings the working pressure reaches 10 bar. The JGI joins two pipes with a 90° bend, to turn the corners of the line without bending the pipe. Variants for 15 and 22 mm pipe.

Technical Specifications

  • Type: Intermediate elbow push-fit fitting (pipe-to-pipe)
  • Pipe: 15 or 22 mm, among the variants
  • Material: Acetal resin
  • Connection: Push-in, stainless steel collet and O-ring
  • Maximum pressure with push-fit fittings: 10 bar
  • Item No.: JGI
  • Brand: SPIRALFLEX

Applications and Uses

  • Changes of direction on aluminium air systems
  • Lines along walls and ceilings
  • Air systems for workshops and laboratories

More details

Brand
SPIRALFLEX
Code
TRJGI15
Manufacturer code
JGI 15
