CAMOZZI FITTING ART. 1250

Code: CL125010
€7.00
VAT excluded: €5.74
Size : HOSE 10
In stock 14 pieces in stock Ships in 24/48 hours

Description

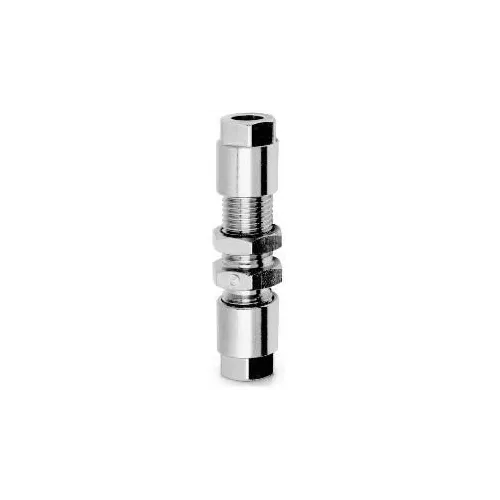

Camozzi Universal Olive Straight Bulkhead Fitting - Item No. 1250


Camozzi 1250 straight bulkhead fitting, from the family of Series 1000 universal olive fittings, made of nickel-plated brass with seats, olives and nuts to DIN 3870-3861 standards. Once the tube is inserted, the nut is tightened and the olive seals tight in the conical seat: the system accepts plastic tubes, with a reinforcing insert, and copper, brass, steel or aluminium tubes. It works up to 40 bar with compressed air and other low-pressure fluids, also in oleodynamic and hydraulic circuits. The Mod. 1250 is fixed in a panel hole with the nut and connects the tubes on the two sides of the wall. Tube 6, 8 or 10 mm.

Technical Specifications

  • Type: Straight bulkhead olive
  • Tube: 6, 8 or 10 mm, among the variants
  • Material: Nickel-plated brass
  • Maximum working pressure: 40 bar
  • Standard for seats, olives and nuts: DIN 3870-3861
  • Tubes: Plastic, copper, brass, steel, aluminium
  • Item No.: 1250
  • Brand: CAMOZZI

Applications and Uses

  • Passing lines through panels and casings
  • Compressed air systems and lines in workshops and industry
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL125010
Manufacturer code
1250 10
