CAMOZZI FITTING ART. 1020

Code: CL10201012
€4.40
VAT excluded: €3.61
Size : 10-1/2"
In stock 4 pieces in stock Ships in 24/48 hours

Description

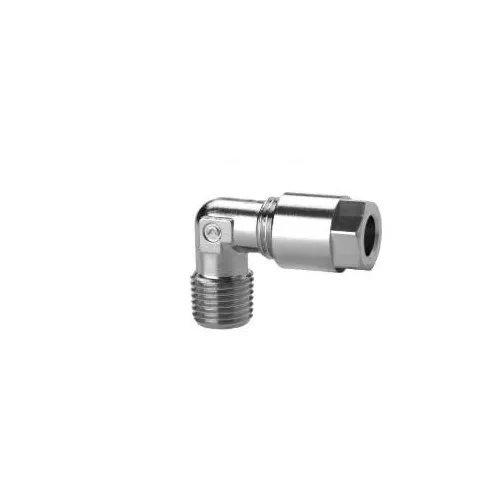

Camozzi Universal Olive Fixed Male Taper Elbow Fitting - Item No. 1020


Camozzi 1020 fixed male taper elbow fitting, from the family of Series 1000 universal olive fittings, made of nickel-plated brass with seats, olives and nuts to DIN 3870-3861 standards. Once the tube is inserted, the nut is tightened and the olive seals tight in the conical seat: the system accepts plastic tubes, with a reinforcing insert, and copper, brass, steel or aluminium tubes. It works up to 40 bar with compressed air and other low-pressure fluids, also in oleodynamic and hydraulic circuits. The Mod. 1020 connects a tube at 90° to a threaded hole with a male taper R thread; for the 12 mm tube it uses the double-cone olive. Tube from 6 to 12 mm, thread from 1/8 to 1/2.

Technical Specifications

  • Type: Fixed male taper olive elbow
  • Thread: Taper R from 1/8 to 1/2 (ISO 7)
  • Tube: from 6 to 12 mm, among the variants
  • Material: Nickel-plated brass
  • Maximum working pressure: 40 bar
  • Standard for seats, olives and nuts: DIN 3870-3861
  • Tubes: Plastic, copper, brass, steel, aluminium
  • Item No.: 1020
  • Brand: CAMOZZI

Applications and Uses

  • Connecting tubes to valves, tanks and components
  • Compressed air systems and lines in workshops and industry
  • Oleodynamic and low-pressure hydraulic circuits

More details

Brand
CAMOZZI
Code
CL10201012
Manufacturer code
1020 10-1/2
