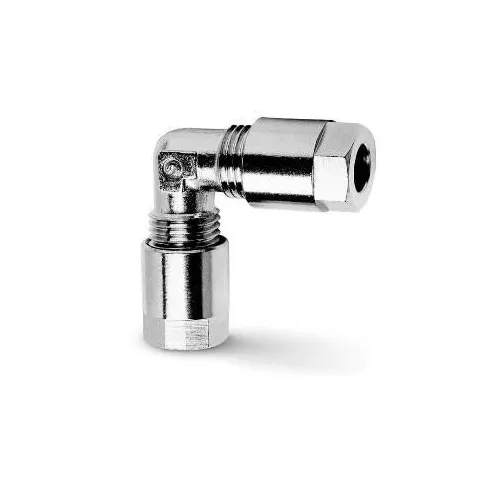

CAMOZZI FITTING ART. 1220

Code: CL122010
€5.10
VAT excluded: €4.18
Size : HOSE 10
In stock 74 pieces in stock Ships in 24/48 hours

Description

Camozzi Universal Olive Intermediate Elbow Fitting - Item No. 1220


Camozzi 1220 intermediate elbow fitting, from the Series 1000 of universal olive fittings in nickel-plated brass. The tube is pushed into the fitting and locked tight by the olive, which the nut deforms in the conical seat: the system works with plastic tubes of every type, with the reinforcing insert, and with copper, brass, steel and aluminium tubes. Seats, olives and nuts follow the DIN 3870-3861 standards and the fittings work up to 40 bar in pneumatic, oleodynamic and low-pressure hydraulic circuits. The Mod. 1220 joins two tubes with a 90° bend without bending them; for the 12 mm tube it uses the double-cone olive. Tube from 6 to 12 mm.

Technical Specifications

  • Type: Intermediate olive elbow (tube-tube)
  • Tube: from 6 to 12 mm, among the variants
  • Material: Nickel-plated brass
  • Maximum working pressure: 40 bar
  • Standard for seats, olives and nuts: DIN 3870-3861
  • Tubes: Plastic, copper, brass, steel, aluminium
  • Item No.: 1220
  • Brand: CAMOZZI

Applications and Uses

  • Changes of direction on rigid tube lines
  • Compressed air systems and lines in workshops and industry
  • Oleodynamic and low-pressure hydraulic circuits

More details

Brand
CAMOZZI
Code
CL122010
Manufacturer code
1220 10

Attachments

Recommended accessories and spare parts

Reviews (0)
No customer reviews for the moment.
