CAMOZZI FITTING ART. 1063

Code: CL1063614
€1.80
VAT excluded: €1.48
Size : 6-1/4"
In stock 19 pieces in stock Ships in 24/48 hours

Description

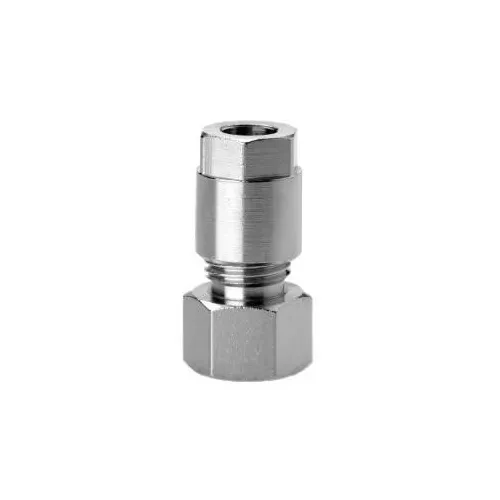

Camozzi Universal Olive Straight Female Cylindrical Fitting - Item No. 1063


Camozzi 1063 straight female cylindrical fitting, belonging to the Series 1000 of universal olive fittings, in nickel-plated brass. Locking is by an olive that the nut, as it tightens, deforms in the conical seat around the tube: in this way the fitting works with copper, brass, steel and aluminium tubes and, with the reinforcing insert, with plastic tubes. Seats, olives and nuts comply with the DIN 3870-3861 standards; the maximum pressure is 40 bar, for pneumatic, oleodynamic and low-pressure hydraulic circuits. The Mod. 1063 has the olive connection for the tube on one side and a female cylindrical G thread on the other. Variants for tube 6 or 8 mm with G1/8 or G1/4.

Technical Specifications

  • Type: Straight female cylindrical olive
  • Female thread: G1/8 or G1/4 (ISO 228)
  • Tube: 6 or 8 mm, among the variants
  • Material: Nickel-plated brass
  • Maximum working pressure: 40 bar
  • Standard for seats, olives and nuts: DIN 3870-3861
  • Tubes: Plastic, copper, brass, steel, aluminium
  • Item No.: 1063
  • Brand: CAMOZZI

Applications and Uses

  • Connecting tubes to components with a male connection
  • Compressed air systems and lines in workshops and industry
  • Maintenance and repair of pneumatic circuits

More details

Brand
CAMOZZI
Code
CL1063614
Manufacturer code
1063 6-1/4

Attachments
