CAMOZZI FITTING ART. 1000

Code: CL10001212
€6.10
VAT excluded: €5.00
Size : 12-1/2"-12
In stock 15 pieces in stock Ships in 24/48 hours

Description

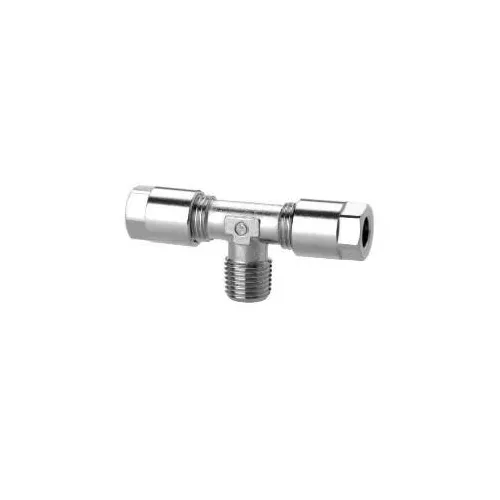

Camozzi Universal Olive Fixed Male Taper Tee Fitting - Item No. 1000


Camozzi 1000 fixed male taper tee fitting, from the Series 1000 of universal olive fittings in nickel-plated brass. The tube is pushed into the fitting and locked tight by the olive, which the nut deforms in the conical seat: the system works with plastic tubes of every type, with the reinforcing insert, and with copper, brass, steel and aluminium tubes. Seats, olives and nuts follow the DIN 3870-3861 standards and the fittings work up to 40 bar in pneumatic, oleodynamic and low-pressure hydraulic circuits. The Mod. 1000 is a tee with two tube connections and a male taper R thread in the centre, to branch a line off a threaded component. Sizes among the variants.

Technical Specifications

  • Type: Fixed male taper olive tee
  • Thread: Taper R (ISO 7)
  • Tube and thread: selectable from the variants
  • Material: Nickel-plated brass
  • Maximum working pressure: 40 bar
  • Standard for seats, olives and nuts: DIN 3870-3861
  • Tubes: Plastic, copper, brass, steel, aluminium
  • Item No.: 1000
  • Brand: CAMOZZI

Applications and Uses

  • Branches on copper or plastic tube lines
  • Compressed air systems and lines in workshops and industry
  • Oleodynamic and low-pressure hydraulic circuits

More details

Brand
CAMOZZI
Code
CL10001212
Manufacturer code
1000 12-1/2

Attachments
