CAMOZZI FITTING ART. 1230

Code: CL123010
€4.00
VAT excluded: €3.28
Size : HOSE 10
In stock 12 pieces in stock Ships in 24/48 hours

Description

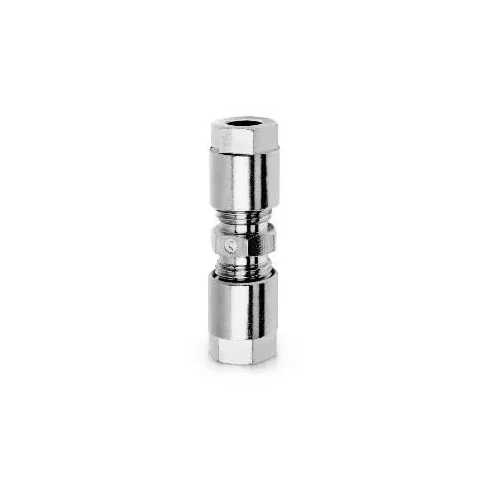

Camozzi Universal Olive Intermediate Straight Fitting - Item No. 1230


Camozzi 1230 intermediate straight fitting, belonging to the Series 1000 of universal olive fittings, in nickel-plated brass. Locking is by an olive that the nut, as it tightens, deforms in the conical seat around the tube: in this way the fitting works with copper, brass, steel and aluminium tubes and, with the reinforcing insert, with plastic tubes. Seats, olives and nuts comply with the DIN 3870-3861 standards; the maximum pressure is 40 bar, for pneumatic, oleodynamic and low-pressure hydraulic circuits. The Mod. 1230 joins two tubes of the same diameter in a straight line, to extend or repair a line. Tube 6, 8 or 10 mm.

Technical Specifications

  • Type: Intermediate straight olive (tube-tube)
  • Tube: 6, 8 or 10 mm, among the variants
  • Material: Nickel-plated brass
  • Maximum working pressure: 40 bar
  • Standard for seats, olives and nuts: DIN 3870-3861
  • Tubes: Plastic, copper, brass, steel, aluminium
  • Item No.: 1230
  • Brand: CAMOZZI

Applications and Uses

  • Joining and repairing copper or plastic tubes
  • Compressed air systems and lines in workshops and industry
  • Maintenance and repair of pneumatic circuits

More details

Brand
CAMOZZI
Code
CL123010
Manufacturer code
1230 10
