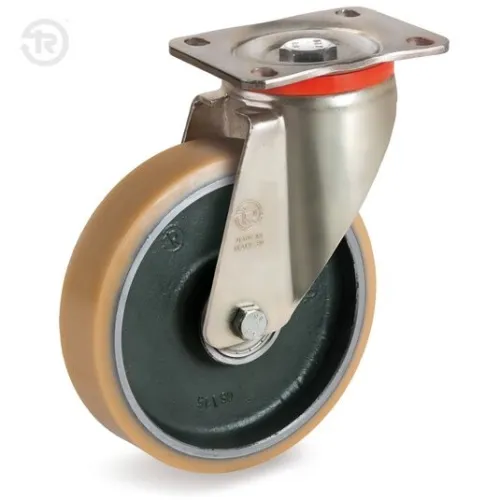

Tellure Rota series 63 wheel, Vulkollan 93 Shore A (wheel with swivel heavy-duty bracket), item no. 637622. Diameter 100x30 mm on swivel heavy-duty bracket, 250 daN at 4 km/h.
Tellure Rota Series 63 Vulkollan Wheel with Swivel Heavy-Duty Bracket - Item No. 637622
Tellure Rota series 63 wheels, with Vulkollan covering of 93 Shore A, with excellent resistance to wear, tearing and deformation, on a mechanical cast iron (63 GH) or forged steel (63 AC) core. Version in 100x30 mm diameter, series 63 AC with forged steel core, on a swivel heavy-duty bracket (type P, maximum load capacity 750 daN). The load capacity is 250 daN at 4 km/h and 200 daN at 6 km/h. Diameters of 80 and 100 mm are chosen from the variants. With suitable brackets they are recommended for heavy handling up to 16 km/h. The manufacturer declares that the range is designed according to ISO 22880 and UNI EN 12529 and complies with the RoHS and REACH directives.
Technical Specifications
Type: Wheel with swivel heavy-duty bracket
Covering: Vulkollan 93 Shore A
Core: Mechanical cast iron (63GH) or forged steel (63AC)
Diameters: 80 and 100 mm
Bracket: Heavy-duty P, swivel, maximum load capacity 750 daN
Tellure Rota series 66 wheel, TR polyurethane 92 Shore A (wheel without bracket), item no. 661101. Wheel only without bracket, diameters from 80 to 175 mm; in the 80x25, load capacity 150 daN at 4 km/h.
Tellure Rota series 65AL wheel, TR polyurethane 92 Shore A (wheel without bracket), item no. 652103. Wheel only without bracket, diameters from 80 to 200 mm; in the 125x35 size, load capacity 400 daN at 4 km/h.
Tellure Rota series 65AL wheel, TR polyurethane 92 Shore A (wheel with drilled bracket and brake), item no. 656802. Drilled bracket with brake, diameters 80 and 100 mm, 200 daN at diameter 100. Fixed or swivel to be confirmed.
