Tellure Rota galvanised backing plate in two sizes, 100x85 and 140x110 mm, for wheel plate brackets. It strengthens the fixing of the bracket to the structure, item no. 110401.

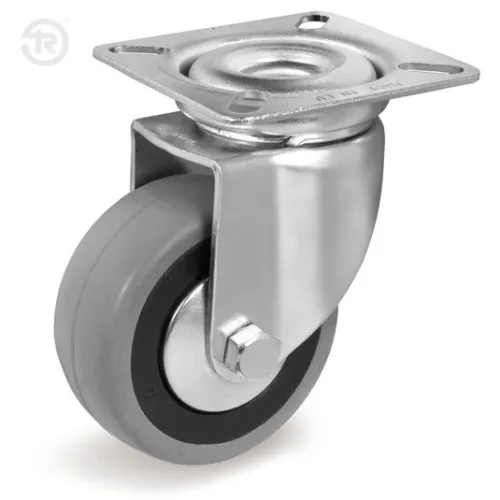

TELLURE ROTA RUBBER SWIVEL PLATE CASTOR — D.50X20 / D.63X24MM
Tellure Rota series 37 wheel, non-marking rubber (wheel with swivel plate), item no. D1P/1/7 50. Non-marking rubber wheel for furniture and institutional use, diameters 50 and 60 mm. Width and code to be confirmed.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description
Rubber Wheel Tellure Rota with Swivel Plate D.50 and D.60 - Item No. D1P/1/7 50
Tellure Rota non-marking rubber wheel with polypropylene core, from series 37, designed for furniture and institutional use. Version with galvanised sheet-steel swivel plate, on a grease-lubricated double ball race. The 50 and 60 mm diameters are chosen from the variants. Width and item number are to be confirmed: the manufacturer's catalogue indicates widths of 18 mm for the 50 diameter and 24 mm for the 60. The manufacturer indicates diameters from 40 to 125 mm for the series and load capacities from 30 to 80 daN at 3 km/h; it is not recommended with organic solvents, chlorinated solvents, hydrocarbons and mineral oils. For the range, the manufacturer declares design to ISO 22880 and UNI EN 12529 and compliance with the RoHS and REACH directives.
Technical Specifications
- Type: Wheel with swivel plate
- Covering: Non-marking rubber
- Core: Polypropylene
- Diameters: 50 and 60 mm
- Bracket: Swivel plate
- Width: to be confirmed
- Operating temperature: from -5 to +40 °C
- Item No.: D1P/1/7 50
- Brand: TELLURE ROTA
Applications and Uses
- Furniture, display cabinets and display stands
- Light tool trolleys
- Supermarkets and institutional settings
More details
- Brand
- CEBORA
- Code
- RU374001
- Manufacturer code
- D1P/1/7 50
