Description

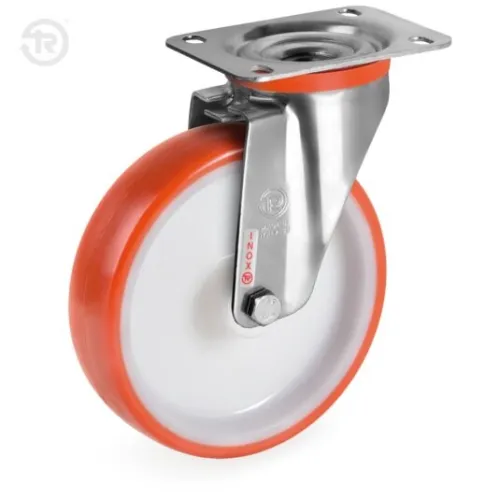

Polyurethane Wheel Tellure Rota Series 60 with Swivel Stainless Steel Bracket and Brake D.80 - Item No. 608801
Tellure Rota series 60 wheel, with 55 Shore D thermoplastic polyurethane covering and polyamide 6 core, combined with an AISI 304 stainless steel bracket. This version has an 80 mm diameter, a swivel stainless steel bracket with brake and a load capacity of 120 daN at 4 km/h. The stainless steel bracket, with a grease-lubricated double race of stainless steel balls, central pin with stainless steel bush and a maximum load capacity of 300 daN, makes it suitable for damp environments and frequent washing. Tellure Rota wheels are designed and tested to the international standards of the sector (ISO 22880, UNI EN 12529), with declared RoHS and REACH compliance.
Technical Specifications
- Type: Wheel with swivel stainless steel bracket and brake
- Covering: Thermoplastic polyurethane 55 Shore D
- Core: Polyamide 6
- Diameter: 80 mm
- Bracket: AISI 304 stainless steel, swivel with brake, maximum load capacity 300 daN
- Operating temperature: from -15 to +80 °C
- Item No.: 608801
- Brand: TELLURE ROTA
Applications and Uses
- Food industry and damp environments
- Trolleys and equipment that are washed often
- Light internal handling
More details
- Brand
- TELLURE ROTA
- Code
- RU608801
- EAN13
- 8007554044766
- Manufacturer code
- 608801
