Tellure Rota galvanised backing plate in two sizes, 100x85 and 140x110 mm, for wheel plate brackets. It strengthens the fixing of the bracket to the structure, item no. 110401.
Tellure Rota series 53 wheel, black rubber 80 Shore A (wheel with swivel plate bracket), item no. 535101. Swivel plate bracket on a grease-lubricated double ball race, diameters from 80 to 280 mm.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

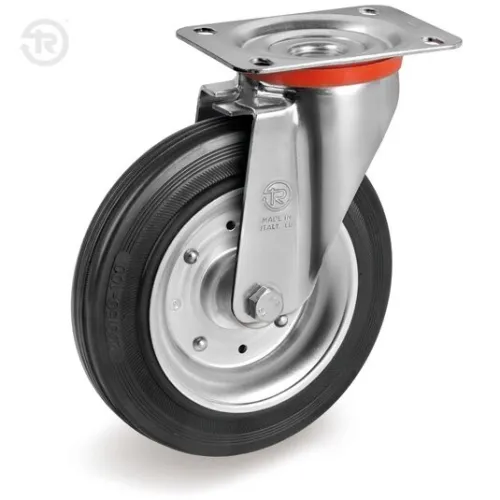

Rubber Wheel Tellure Rota Series 53 with Swivel Plate - Item No. 535101
Tellure Rota series 53 wheel, in black 80 Shore A rubber on a core made of two riveted galvanised sheet-steel discs. The hub runs on a self-lubricating polyamide bush or on a roller bearing. Version with swivel plate bracket: the plate, fork and ball retaining ring are in electro-galvanised sheet steel, the swivel action runs on a grease-lubricated double ball race and the central pin is integral with the plate. The diameters range from 80 to 280 mm. The dimensions are chosen from the variants. Suitable for trolleys with light loads, even with obstacles, in mixed indoor and outdoor use and in industrial environments with moisture and oils. It is not recommended with aggressive chemical agents and may leave marks on delicate floors.
Technical Specifications
- Type: Wheel with swivel plate bracket
- Covering: Black rubber 80 Shore A
- Core: Galvanised sheet steel (two riveted discs)
- Diameters: from 80 to 280 mm
- Bracket: Swivel plate on a double ball race
- Operating temperature: from -20 to +60 °C
- Item No.: 535101
- Brand: TELLURE ROTA
Applications and Uses
- Tool trolleys
- Small mobile scaffolds
- Indoors and outdoors
More details
- Brand
- TELLURE ROTA
- Code
- RUSCM100
- EAN13
- 8007554028612
- Manufacturer code
- 535102
