Tellure Rota galvanised backing plate in two sizes, 100x85 and 140x110 mm, for wheel plate brackets. It strengthens the fixing of the bracket to the structure, item no. 110401.
Tellure Rota series 53 wheel, black rubber 80 Shore A (wheel with swivel plate bracket and brake), item no. 535421. Swivel plate bracket with front total lock brake, diameters from 80 to 200 mm.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

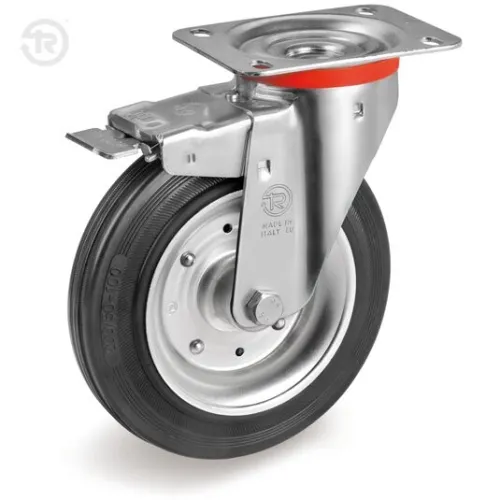

Rubber Wheel Tellure Rota Series 53 with Swivel Plate and Brake - Item No. 535421
Black 80 Shore A rubber wheel from Tellure Rota series 53, with a core made of two galvanised sheet-steel discs. The hub is mounted on a self-lubricating polyamide bush or on rollers. Version with swivel plate bracket and front-operated total lock brake, which locks both the wheel and the swivel action of the bracket. The swivel action runs on a grease-lubricated double ball race. The diameters range from 80 to 200 mm. The diameter is chosen from the variants. Suitable for trolleys with light loads, even with obstacles, in mixed indoor and outdoor use and in industrial environments with moisture and oils. It is not recommended with aggressive chemical agents and may leave marks on delicate floors.
Technical Specifications
- Type: Wheel with swivel plate bracket and brake
- Covering: Black rubber 80 Shore A
- Core: Galvanised sheet steel (two riveted discs)
- Diameters: from 80 to 200 mm
- Bracket: Swivel plate with front brake
- Operating temperature: from -20 to +60 °C
- Item No.: 535421
- Brand: TELLURE ROTA
Applications and Uses
- Tool trolleys
- Small mobile scaffolds
- Indoors and outdoors
More details
- Brand
- TELLURE ROTA
- Code
- RUSCM100F
- EAN13
- 8007554029114
- Manufacturer code
- 535422
