Tellure Rota galvanised backing plate in two sizes, 100x85 and 140x110 mm, for wheel plate brackets. It strengthens the fixing of the bracket to the structure, item no. 110401.
Tellure Rota series 67 wheel, thermosetting phenolic resin (monolithic wheel) (wheel with swivel high-temperature bracket), item no. 677102. Swivel high-temperature bracket, diameters 80 and 100 mm, 200 daN at diameter 100.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

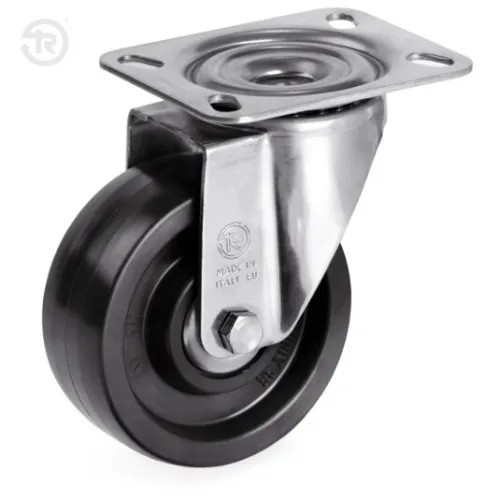

Thermosetting Wheel Tellure Rota Series 67 with Swivel Bracket - Item No. 677102
Tellure Rota series 67 monolithic wheel, in thermosetting phenolic resin, resistant from -20 to +300 °C and with hub on shielded balls lubricated with high-temperature grease. Version with swivel high-temperature bracket, in galvanised sheet steel with balls lubricated with high-temperature grease. In the 100x35 mm diameter, with a 100x85 mm plate, the load capacity is 200 daN. The 80 and 100 mm diameters are chosen from the variants. It is suited to the food industry and ovens, especially in bakeries; the manufacturer states it is not suitable where there are obstacles or on delicate floors. For the range, the manufacturer declares design to ISO 22880 and UNI EN 12529 and compliance with the RoHS and REACH directives.
Technical Specifications
- Type: Wheel with swivel high-temperature bracket
- Covering: Thermosetting phenolic resin (monolithic wheel)
- Core: Monolithic
- Diameters: 80 and 100 mm
- Bracket: Swivel for high temperatures, 100x85 mm plate
- Operating temperature: from -20 to +300 °C
- Item No.: 677102
- Brand: TELLURE ROTA
Applications and Uses
- Ovens and the baking industry
- Trolleys for high temperatures
- Food industry
More details
- Brand
- TELLURE ROTA
- Code
- RU677101
- EAN13
- 8007554044957
- Manufacturer code
- 677101
