SOLID ALUMINIUM PULLEYS SECTION "B"

Code: PUA1002B
€26.00
VAT excluded: €21.31
Size : 100 2B
In stock 2 pieces in stock Ships in 24/48 hours

Description

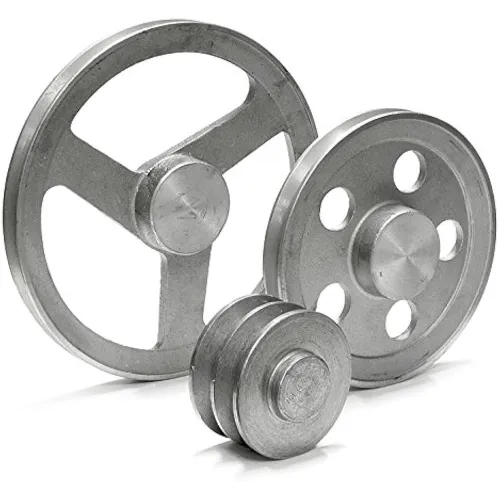

Solid Aluminium Pulleys, B Section - Item No. PAT1B250


Solid aluminium V-pulleys for B section belts, with 1 and 2 grooves and a diameter of 80 to 300 mm depending on the variant chosen. The B section is that of the classic 17 x 11 mm belts (ISO 4184, DIN 2215), which in the SIT catalogue are compatible with SPB grooves. Aluminium makes the pulley lighter than a cast iron one, useful on light drives and where rotating weight matters. The hub is solid: the bore must be made to the size of the shaft, with a keyway if needed. Alloy, bore tolerance and balancing are not stated for this family: ask the supplier before buying, especially for high peripheral speeds.

Technical Specifications

  • Type: solid aluminium V-pulley
  • Section: B, classic belts 17 x 11 mm (ISO 4184 - DIN 2215)
  • Number of grooves: 1 and 2, to be chosen among the variants
  • Diameter: 80 to 300 mm, to be chosen among the variants
  • Bore: to be machined on the solid hub
  • Construction details: to be confirmed with the supplier
  • Item No.: PAT1B250
  • Brand: SIT

Applications and Uses

  • Light V-belt drives
  • Electric motors, fans and low-power pumps
  • Replacement of pulleys on existing machines
  • Drives where reducing rotating weight matters

More details

Brand
SIT
Code
PUA1002B
Manufacturer code
PAT2B100
