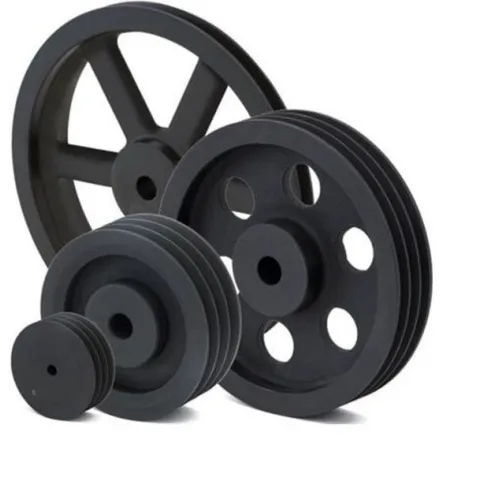

CAST IRON MONOBLOCK PULLEY SECTION A 2 GROOVES

5,0 1 review
Code: PU1502A
€22.70
VAT excluded: €18.61
Size : 150 2 A
In stock 2 pieces in stock Ships in 24/48 hours

Description

One-piece Cast Iron Pulley, A Section, 2 Grooves - Item No. PUA200


The one-piece solid-hub pulley of A section with 2 grooves is made of cast iron and takes A and SPA belts. The groove is made according to DIN 2211 - ISO 4183, with numerically controlled machining and an angle of 34 or 38 degrees depending on the pitch diameter. Made of DIN 1691 GG20 - GG25 cast iron, with a surface treatment that protects it from oxidation, the pulley works at up to 35 m/s peripheral speed. The pitch diameter, from 50 to 280 mm, is chosen among the variants. Since the bore is not finished, the solid hub must be bored and keyed to the size of the shaft; in the SIT catalogue these pulleys are not balanced.

Technical Specifications

  • Type: one-piece PT V-pulley with solid hub
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: A, A and SPA belts
  • Number of grooves: 2
  • Pitch diameter: 50 to 280 mm, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Bore: unfinished, to be machined on the solid hub
  • Maximum peripheral speed: 35 m/s
  • Item No.: PUA200
  • Brand: SIT

Applications and Uses

  • V-belt drives on industrial machines
  • Electric motors, compressors and pumps
  • Agricultural machinery and processing plants
  • Fans and extractors

More details

Brand
SIT
Code
PU1502A
Manufacturer code
PT150SPA2
