SOLID ALUMINIUM PULLEYS SECTION "Z"

Code: PUA1001Z
€15.30
VAT excluded: €12.54
Size : 100 1Z
In stock 1 piece in stock Ships in 24/48 hours

Description

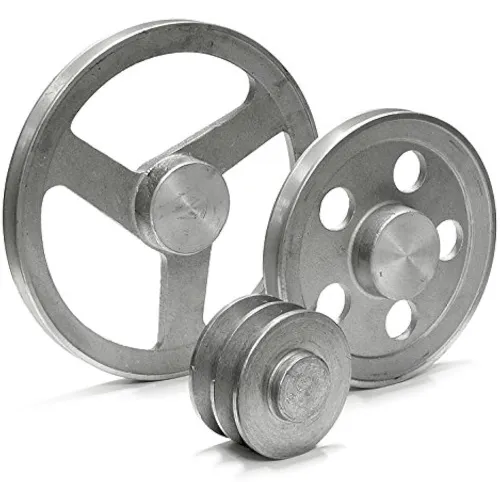

Solid Aluminium Pulleys, Z Section - Item No. PAT2Z60


Solid aluminium V-pulleys for Z section belts, with 1 and 2 grooves and a diameter of 40 to 200 mm depending on the variant chosen. The Z section is that of the classic 10 x 6 mm belts (ISO 4184, DIN 2215), which in the SIT catalogue are compatible with SPZ grooves. Aluminium makes the pulley lighter than a cast iron one, useful on light drives and where rotating weight matters. The hub is solid: the bore must be made to the size of the shaft, with a keyway if needed. Alloy, bore tolerance and balancing are not stated for this family: ask the supplier before buying, especially for high peripheral speeds.

Technical Specifications

  • Type: solid aluminium V-pulley
  • Section: Z, classic belts 10 x 6 mm (ISO 4184 - DIN 2215)
  • Number of grooves: 1 and 2, to be chosen among the variants
  • Diameter: 40 to 200 mm, to be chosen among the variants
  • Bore: to be machined on the solid hub
  • Construction details: to be confirmed with the supplier
  • Item No.: PAT2Z60
  • Brand: SIT

Applications and Uses

  • Light V-belt drives
  • Electric motors, fans and low-power pumps
  • Replacement of pulleys on existing machines

More details

Brand
SIT
Code
PUA1001Z
Manufacturer code
PAT1Z100
