OXYGEN REGULATOR EN REAR CONNECTION

Code: SFM10850 EAN: 8592346004528
€147.50
VAT excluded: €120.90
In stock 1 piece in stock Ships in 24/48 hours

Description

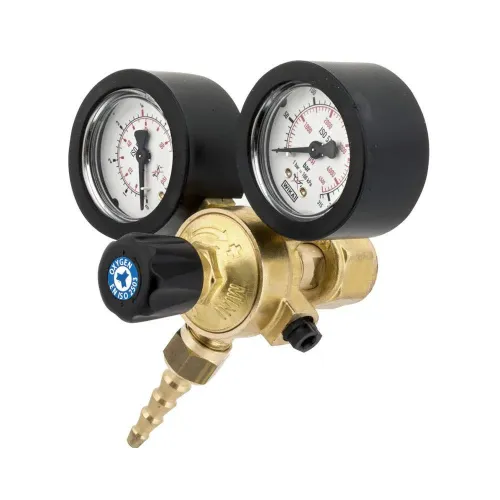

Oxygen Pressure Regulator with Rear Connection GCE Mujelli - Item No. 0761320


GCE Mujelli regulator 0761320 for oxygen with rear connection, the companion to the acetylene regulator of the same series in kits with 5 litre cylinders. The rear connection keeps it tucked behind the valve, which is handy on trolleys and in portable kits. It accepts oxygen up to 200 bar and delivers it adjustable from 0 to 4 bar, with a maximum flow of 35 m³/h. It connects to the cylinder with the W21.7x1/14 connection and has a 3/8 outlet with hose barb for the torch hose. Two 50 mm gauges, 315 bar for high pressure and 6 bar for low pressure. Weight 1.27 kg. The cap, diaphragm and gauges are available as spare parts.

Technical Specifications

  • Type: Pressure regulator with rear connection
  • Gas: Oxygen
  • Inlet pressure: 200 bar
  • Outlet pressure: from 0 to 4 bar
  • Maximum flow: 35 m³/h
  • Cylinder connection: W21.7x1/14
  • Gauges: 2, diameter 50 mm
  • Weight: 1.27 kg
  • Item No.: 0761320
  • Brand: GCE MUJELLI

Applications and Uses

  • Oxyacetylene kits with 5 litre cylinders
  • Flame welding, brazing and heating
  • Plumbing and heating, and mobile work

More details

Brand
MUJELLI
Code
SFM10850
EAN13
8592346004528
Manufacturer code
0761320

Recommended accessories and spare parts

SAFETY VALVE MV 93RP OXYGEN 80205

€48.00
AVAILABLE
Availability: 8 In stock

GCE SafeGuard 2 MV93-RP safety valve to fit at the regulator outlet, against flashback and gas return, G3/8 connections, chrome-plated: gas version 80255 and oxygen version 80205 among the variants.
