GCE SafeGuard 2 MV93-RP safety valve to fit at the regulator outlet, against flashback and gas return, G3/8 connections, chrome-plated: gas version 80255 and oxygen version 80205 among the variants.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

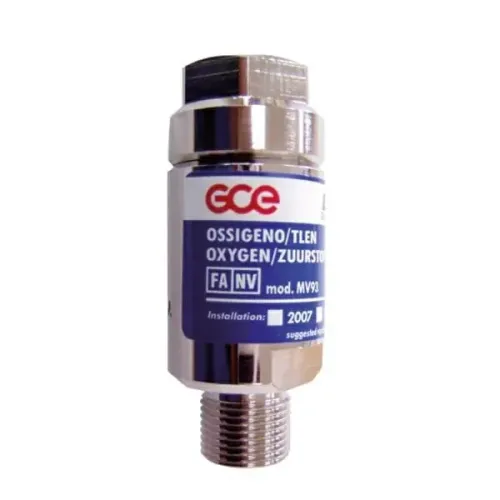

Flashback Arrestor for Regulator GCE SafeGuard 2 MV93-RP
GCE SafeGuard 2 MV93-RP safety valve for regulators: it screws onto the 3/8 outlet of the pressure regulator and protects the cylinder and the regulator from flashbacks and gas return that could travel back along the hose. It is fully chrome-plated and has a flow capacity suited even to cutting up to 300 mm: according to the catalogue, up to 50 m³/h for oxygen, 12 m³/h for LPG and 6 m³/h for acetylene. The variants are the version for fuel gases, 80255, with left-hand thread, and the one for oxygen, 80205. Replacement seals are available. Fitting a valve on each regulator, oxygen and gas, is the basis of oxy-fuel safety.
Technical Specifications
- Type: Flashback and gas return arrestor
- Mounting: At the regulator outlet
- Connections: G3/8
- Maximum flow: 50 m³/h oxygen, 12 m³/h LPG, 6 m³/h acetylene
- Finish: Chrome-plated
- Versions: 80255 gas, 80205 oxygen, among the variants
- Brand: GCE MUJELLI
Applications and Uses
- Protection of cylinders and regulators
- Welding and oxy-fuel cutting systems
- Workshops and building sites
More details
- Brand
- MUJELLI
- Code
- SFM80200
- EAN13
- 8592346199125
- Manufacturer code
- 80205
