MUJELLI BASECONTROL SE 1 MAN 4 BAR PROPANE REGULATOR

Code: SFM10006 EAN: 8592346646292
€67.80
VAT excluded: €55.57
In stock 1 piece in stock Ships in 24/48 hours

Description

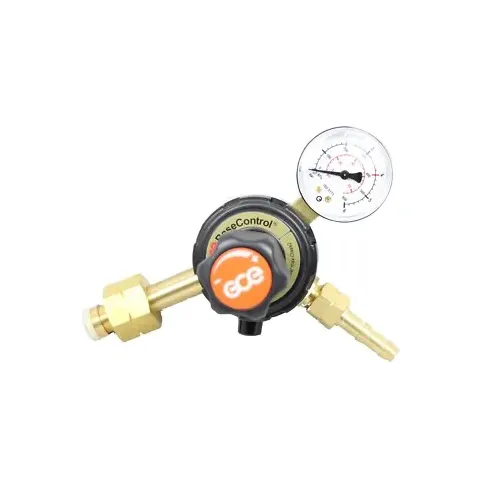

Propane Regulator GCE BaseControl 4 bar with Gauge - Item No. 0870376


GCE BaseControl pressure regulator 0870376 for propane, with one gauge. It reduces the cylinder pressure, up to 25 bar, to 4 bar at the outlet, with a maximum flow of 12 m³/h: values suited to propane cutting and heating torches and to burners, so much so that the manufacturer also includes it in the kit for bitumen heaters. It connects to the cylinder with the W20x1/14 left-hand connection and has a G3/8 left-hand outlet, as required for fuel gases; it is not suitable for hydrogen. Compliant with EN ISO 2503, with a safety valve against overpressure and an on/off valve at the outlet as standard. Forged brass body, weight 1.2 kg.

Technical Specifications

  • Type: Cylinder pressure regulator
  • Gas: Propane
  • Standard: EN ISO 2503
  • Pressure: 25 bar inlet, 4 bar outlet
  • Maximum flow: 12 m³/h
  • Cylinder connection: W20x1/14 left-hand
  • Outlet: G3/8 left-hand
  • Gauges: 1
  • Weight: 1.2 kg
  • Item No.: 0870376
  • Brand: GCE MUJELLI

Applications and Uses

  • Propane torches for cutting and heating
  • Burners and waterproofing
  • Plumbing and heating, and building sites
