MUJELLI PROCONTROL OXYGEN REGULATOR EN-ISO2503

Code: SFM10100 EAN: 8592346707344
€98.30
VAT excluded: €80.57
In stock 3 pieces in stock Ships in 24/48 hours

Description

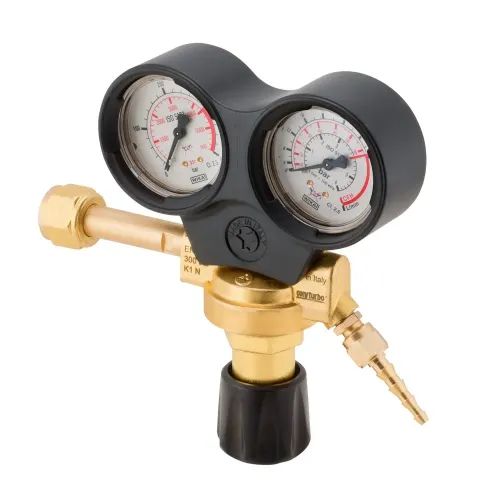

Oxygen Pressure Regulator GCE Mujelli ProControl EN ISO 2503 - Item No. 0780747


GCE Mujelli ProControl pressure regulator 0780747 for oxygen cylinders, compliant with EN ISO 2503. It is the evolution of the DinControl regulator, known in Italy as the UNI regulator. It receives oxygen up to 200 bar and delivers it adjustable from 0 to 10 bar with a maximum flow of 55 m³/h, enough even for cutting. It connects to the cylinder with the W21.7x1/14 connection and has a G3/8 right-hand outlet with hose barb. It is fitted with two 63 mm gauges, the 9415070 of 315 bar and the 16 bar one for low pressure, with rubber protection. It has a pressure relief valve and an outlet shut-off valve as standard. Forged brass body, temperature from -20 to 60 °C.

Technical Specifications

  • Type: Cylinder pressure regulator
  • Gas: Oxygen
  • Standard: EN ISO 2503
  • Inlet pressure: 200 bar
  • Outlet pressure: from 0 to 10 bar
  • Maximum flow: 55 m³/h
  • Cylinder connection: W21.7x1/14
  • Gauges: 2, diameter 63 mm
  • Safety: Relief valve and outlet valve
  • Item No.: 0780747
  • Brand: GCE MUJELLI

Applications and Uses

  • Oxy-fuel cutting and flame welding
  • Supply to workshop torches
  • Structural work and maintenance

More details

Brand
MUJELLI
Code
SFM10100
EAN13
8592346707344
Manufacturer code
0780747
