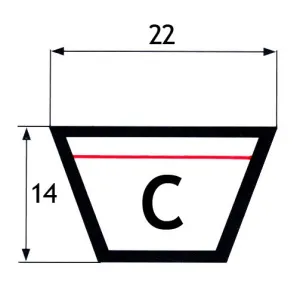

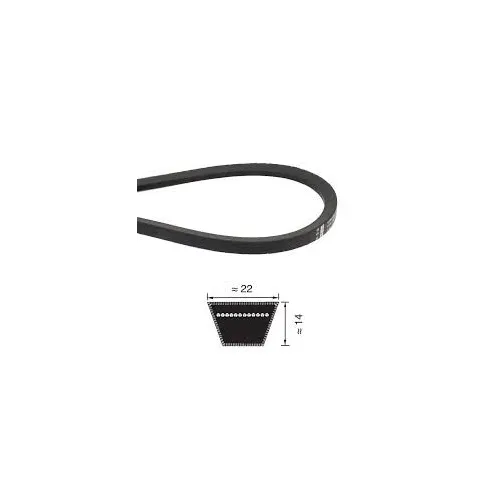

V-BELT SECTION "C" FROM 43 TO 99

The 5V section V-belt is a high-performance drive belt, designed to transmit high power in industrial machinery and mechanical plants. Thanks to its wider trapezoidal profile, it offers greater load capacity and superior grip, ensuring efficient and long-lasting transmission.

The section “B” V-belts — with codes ranging from B24 to B60 — are trapezoidal-profile drive belts (V‑belts) widely used to transfer power between shafts by means of pulleys with a compatible groove. The section “B” indicates a standard profile with a back width of approximately 17 mm and a height of approximately 11 mm, compliant with ISO/DIN standards for V‑belts. The variants B24…B60 cover various pitch lengths, expressed by international standard codes and available in many lengths in millimetres.

The Eagle Purple 64 toothed belt is a high-performance synchronous drive belt, part of the Silent Sync® / Eagle range designed for industrial and mechanical applications where precision, quiet running and reliability are required. The number 64 indicates the belt width in millimetres (64 mm). This belt is available in several variants with lengths expressed in millimetres, to suit the power transmission and synchronised motion requirements of your systems.

The toothed belt XL 050 is a precision mechanical belt, ideal for reliable synchronous drives. The designation “XL 050” indicates the belt section, with back width of 0,3125 inch (7.94 mm) and tooth pitch of 0,2 inch (5.08 mm). Several variants are available, identified by the belt length expressed in millimetres, to suit any application.

The section “B” V-belts — with designations ranging from B61 to B99 — are classic V‑belt power transmission belts designed to transfer power between shafts using pulleys with compatible grooves. Section B indicates a standard trapezoidal profile with a top width of approximately 17 mm and a height of approximately 11 mm, compliant with international V‑belt standards. The B61…B99 variants correspond to different belt pitch lengths, which are identified by standard codes (linked to the length in inches converted into millimetres).

The toothed belt L 050 is a precision mechanical belt, ideal for reliable synchronous drives. The designation “XL 050” indicates the belt section, with a back width of 0,3125 inch (7.94 mm) and a tooth pitch of 0,375 inch (9,525 mm). Several variants are available, identified by the belt length expressed in millimetres, to suit any application.

H 150 – Precision toothed belt with back width of 1,5 inches (38.1 mm) and tooth pitch of 0,5 inch (12.7 mm). Available in various lengths expressed in millimetres, ideal for synchronous drives.

The toothed belt XL 037 is a precision mechanical belt for reliable synchronous drives. The designation “XL 037” indicates the belt section, with back width of 0,25 inch (6.35 mm) and tooth pitch of 0,2 inch (5.08 mm). Several variants are available, identified by the belt length expressed in millimetres, to suit any application.

The section “SPZ” V-belt is an industrial V-belt belonging to the SIT SP series, designed for light and medium-light power transmissions. Compared with traditional section Z belts, the SPZ guarantees greater operating stability, better efficiency and longer service life, thanks to a more advanced construction.

The section “A” V-belts – with designations ranging from A15 to A60 – are classic V‑belt drive belts used to transfer power between shafts by means of grooved pulleys. The “A” profile indicates a standard trapezoidal section with a back width of approximately 13 mm and a height of approximately 8 mm, compliant with ISO/DIN standards for V‑belts. The variants from A15 to A60 refer to the different pitch lengths of the belt, expressed in standard numbers, and are available in many lengths to suit various mechanical and industrial applications.

The Eagle Orange 70 toothed belt is a high-performance synchronous drive belt, part of the Silent Sync® / Eagle range designed for industrial applications and mechanical systems requiring precision and reliability. The number 70 indicates the belt width in millimetres (70 mm). The belt is available in several variants with lengths expressed in millimetres, to suit the power transmission and synchronisation requirements of your application.

The section “D” V-belts — in sizes from D110 to D285 — are classic “V” profile power transmission belts, designed to transfer power between shafts by means of grooved pulleys. The “D” section identifies a wide-band profile, with a standard top width of approximately 36.5 mm and a height of approximately 21.8 mm according to international standards, ideal for transmissions with heavier loads than sections A, B or C. The D110…D285 variants cover different belt pitch lengths to suit mechanical applications of different configurations.

⚡ Sold by rib: make sure you add the number of ribs required to the quantity (e.g. Ribs = 4 - Quantity = 2 you will receive 2 belts of 4 ribs).
The Poly‑V belt, section J is a multi-rib belt designed to transmit power efficiently on grooved pulleys. It is flexible, compact and suitable for transmissions with several parallel ribs.

H 100 – Precision toothed belt with back width of 1 inch (25.4 mm) and tooth pitch of 0,5 inch (12.7 mm). Available in various lengths expressed in millimetres, ideal for reliable synchronous drives.

The section “B” V-belts — with designations ranging from B100 to B300 — are classic V-profile drive belts designed to transfer power in mechanical and industrial applications. The section “B” indicates a standard trapezoidal profile with a back width of approximately 17 mm and a height of approximately 11 mm, compliant with international standards for V‑belts. The variants B100…B300 refer to increasing pitch lengths, expressed as a code, and allow adaptation to different requirements for transmission between shafts by means of compatible pulleys.

H 075 – Precision toothed belt with a back width of 0,75 inches (19.05 mm) and tooth pitch of 0,5 inches (12.7 mm). Available in various lengths expressed in millimetres, suitable for reliable synchronised drives.
