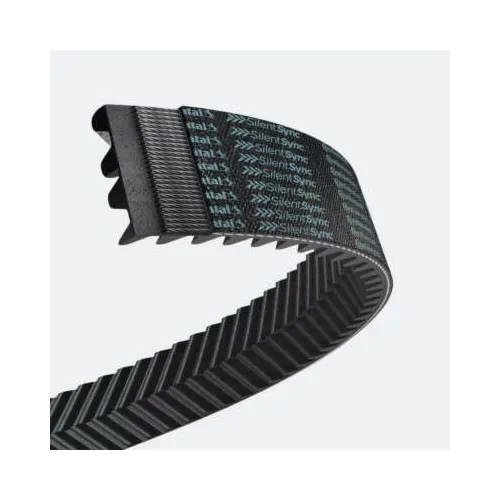

Eagle Green 52.5 Timing Belt


Pitch 14 mm, width 52.5 mm, thickness 8.6 mm: these are the dimensions of the Eagle Green 52.5, the G type of the Silent Sync family. According to SIT, the staggered helical tooth reduces noise by about 15 dB compared with other timing belts and makes the belt self-aligning, so the pulleys do not require flanges.

Inside work aramid (Kevlar) cords embedded in an HNBR compound; the teeth are protected by JPEX fabric. Lengths available from 994 to 3,920 mm, to be selected among the variants.

Technical Specifications

  • Profile: 14M, staggered helical tooth
  • Belt width: 52.5 mm
  • Thickness: 8.6 mm
  • Linear mass: 0.380 kg/m
  • Operating temperature: -30 to +95 °C (short periods -40 to +130 °C)
  • Antistatic: according to ISO 9563
  • Oil resistance: excellent
  • Lengths from 994 to 3,920 mm
  • Series: Silent Sync / Eagle
  • Item No.: CIEG14M00
  • Brand: SIT

Applications and Uses

  • Food machinery
  • Textile machines
  • Woodworking machines
  • Machine tools
