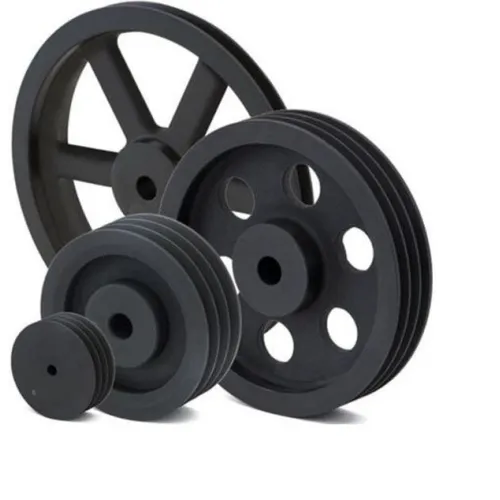

CAST IRON MONOBLOCK PULLEY SECTION C 1 GROOVE

Code: PU1201A
€16.70
VAT excluded: €13.69
Size : 118 1 A
In stock 2 pieces in stock Ships in 24/48 hours

Description

One-piece Cast Iron Pulley, 1 Groove - Item No. PT120SPA1


Solid-hub cast iron pulley with one groove; the section is to be confirmed: the catalogue name says C, the code and the variants say A (A and SPA belts). The groove is made according to DIN 2211 - ISO 4183, with numerically controlled machining and an angle of 34 or 38 degrees depending on the pitch diameter. The material is DIN 1691 GG20 - GG25 cast iron with a protective surface treatment against oxidation; the permitted peripheral speed reaches 35 m/s. The pitch diameter, from 50 to 130 mm, is chosen among the variants. The bore is to be made in the workshop on the solid hub; the manufacturer does not balance them, precisely because the bore is not finished.

Technical Specifications

  • Type: one-piece PT V-pulley with solid hub
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: to be confirmed (A according to the code and the variants, C according to the catalogue name)
  • Number of grooves: 1
  • Pitch diameter: 50 to 130 mm, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Bore: unfinished, to be machined on the solid hub
  • Maximum peripheral speed: 35 m/s
  • Item No.: PT120SPA1
  • Brand: SIT

Applications and Uses

  • Agricultural machinery and processing plants
  • Fans and extractors
  • Replacement on existing V-belt drives

More details

Brand
SIT
Code
PU1201A
Manufacturer code
PT120SPA1
