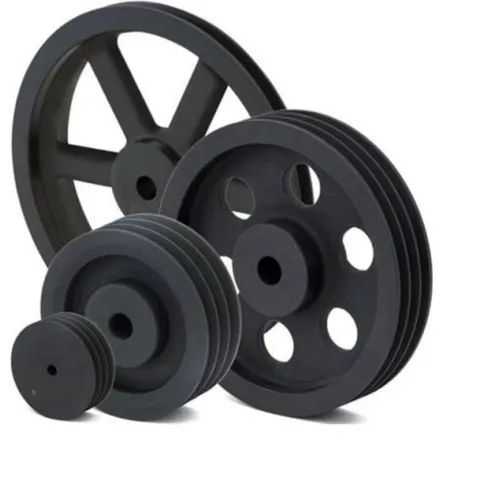

CAST IRON MONOBLOCK PULLEY SECTION C 5 GROOVES

Code: PU1105C
€61.60
VAT excluded: €50.49
Size : 110 5 C
In stock 2 pieces in stock Ships in 24/48 hours

Description

One-piece Cast Iron Pulley, C Section, Multiple Grooves - Item No. PT110SPC5


One-piece cast iron V-pulley with solid hub and a number of grooves (1 to 6) to choose among the variants, C section: it takes C belts (22 x 14 mm). The grooves follow DIN 2211 and ISO 4183 and SIT pulleys are turned on numerically controlled machines; the groove angle is 34 degrees for the smaller diameters and 38 for the larger ones. The cast iron is DIN 1691 GG20 - GG25 with a surface treatment against rust; maximum peripheral speed 35 m/s. The pitch diameter, from 110 to 320 mm, is selected among the variants. The bore is to be made in the workshop on the solid hub; the manufacturer does not balance them, precisely because the bore is not finished.

Technical Specifications

  • Type: one-piece PT V-pulley with solid hub
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: C, C belts (22 x 14 mm)
  • Number of grooves: 1 to 6, to be chosen among the variants
  • Pitch diameter: 110 to 320 mm, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Bore: unfinished, to be machined on the solid hub
  • Maximum peripheral speed: 35 m/s
  • Item No.: PT110SPC5
  • Brand: SIT

Applications and Uses

  • Agricultural machinery and processing plants
  • Fans and extractors
  • Replacement on existing V-belt drives
  • V-belt drives on industrial machines

More details

Brand
SIT
Code
PU1105C
Manufacturer code
PT110SPC5
