CYLINDRICAL ROLLER BEARINGS N 23XX

Code: CUIN2304
€0.00
VAT included
Size : N 2304
In stock 3 pieces in stock Ships in 24/48 hours

Description

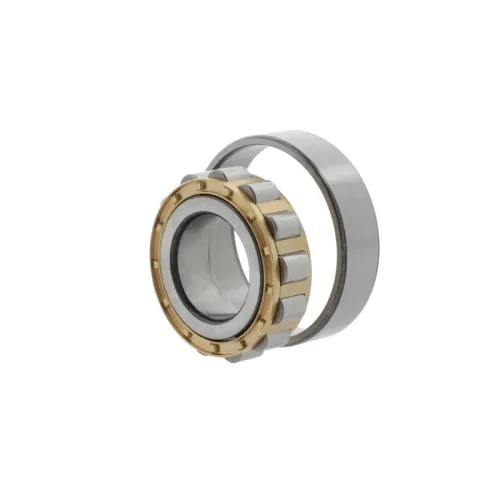

FAG N 23XX Series Cylindrical Roller Bearings


FAG (Schaeffler group) cylindrical roller bearings of the N 23XX series, type N: a single row of rollers with cage and solid rings. In type N the two flanges are on the inner ring and the outer ring is plain: it does not absorb axial forces and compensates for length within itself, as a floating bearing. The rings are separable and fitted with interference, so mounting and dismounting are easy; the cage prevents contact between the rollers. Thanks to the cage, rotation speeds can be higher than in full-complement roller versions.

Technical Specifications

  • Type: Cylindrical roller bearing, single row, type N
  • Series: N 23XX
  • Rings: inner with two flanges, outer plain
  • Function: floating bearing, compensates for length
  • Cage: present, spaces the rollers
  • Capacity: very high radial load, high rigidity
  • Item No.: CUIN23
  • Brand: FAG (Schaeffler)

Applications and Uses

  • Electric motors and industrial gearboxes
  • Transmissions with heavy radial loads
  • Shaft supports of large machines

More details

Brand
FAG
Code
CUIN2304
Reviews (0)
No customer reviews for the moment.
