FAG N 2XX series (Schaeffler group), type N (Item No. N228-E-XL-M1): single-row cylindrical roller bearings with cage and solid rings, high rigidity and heavy radial loads. Sizes can be selected among the variants.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

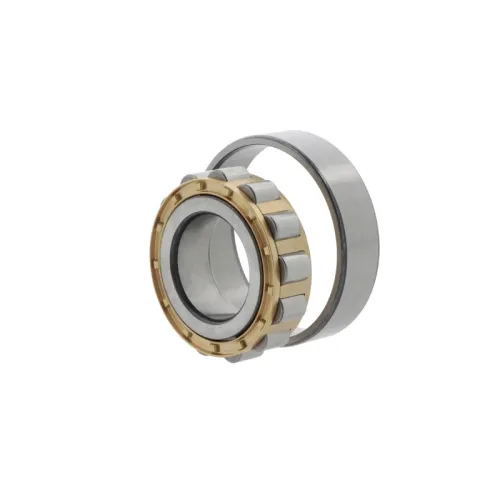

FAG N 2XX Series Cylindrical Roller Bearings - Item No. N228-E-XL-M1
The FAG (Schaeffler) N 2XX series brings together type N radial bearings with a single row of cylindrical rollers, with solid rings and rollers spaced by the cage. Thanks to the cage, rotation speeds can be higher than in full-complement roller versions. With a plain outer ring and an inner ring with two flanges, type N leaves axial displacement free: it serves as the floating side of the shaft and cannot carry axial forces. For the same size, cylindrical roller bearings have higher basic load ratings than ball bearings, so they are chosen where radial loads are heavy. Reference item of the range: N228-E-XL-M1.
Technical Specifications
- Construction: Single row of cylindrical rollers with cage, solid rings
- Type: N, series N 2XX
- Function: floating bearing, compensates for length
- Rings: inner with two flanges, outer plain
- Mounting: Separable rings, interference fit
- Cage: brass (M1), among the versions
- Item No.: N228-E-XL-M1
- Brand: FAG (Schaeffler)
Applications and Uses
- Machine tools and drive spindles
- Machines for processing metals and plastics
- Pumps, fans and compressors
More details
- Brand
- FAG
- Code
- CUIN202
- EAN13
- 4012801592093
- Manufacturer code
- N202-E-XL-TVP2
