ISB H 2XX series adapter sleeves for bearings with tapered bore: combined with a locknut and lock washer, they make mounting and dismounting easier. Sizes from H 204.
FAG NJ 23XX series, type NJ (Item No. NJ2315-E-XL-TVP2): single-row cylindrical roller bearings, solid rings and cage, for heavy radial loads and high rigidity. Schaeffler group. Sizes can be selected among the variants.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

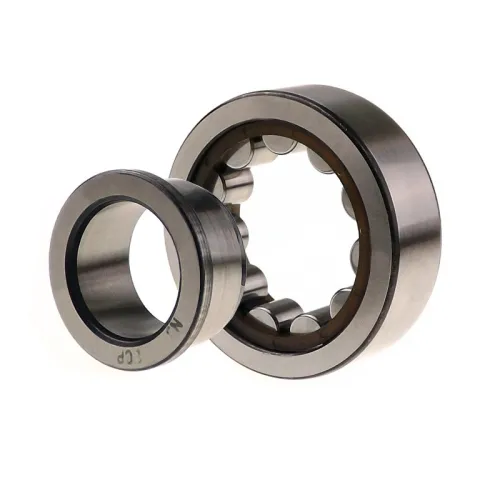

FAG NJ 23XX Series Cylindrical Roller Bearings - Item No. NJ2315-E-XL-TVP2
The FAG (Schaeffler) NJ 23XX series brings together type NJ radial bearings with a single row of cylindrical rollers, with solid rings and rollers spaced by the cage. Thanks to the cage, rotation speeds can be higher than in full-complement roller versions. With one flange on the inner ring and two on the outer, the NJ is a semi-fixed bearing: it supports radial loads and axial thrust in one direction, while in the other it slides. For the same size, cylindrical roller bearings have higher basic load ratings than ball bearings, so they are chosen where radial loads are heavy. Reference item of the range: NJ2315-E-XL-TVP2.
Technical Specifications
- Construction: Single row of cylindrical rollers with cage, solid rings
- Type: NJ, series NJ 23XX
- Function: semi-fixed, axial guidance in one direction
- Rings: outer with two flanges, inner with one flange
- Mounting: Separable rings, interference fit
- Cage: polyamide with glass fibre (TVP2), among the versions
- Item No.: NJ2315-E-XL-TVP2
- Brand: FAG (Schaeffler)
Applications and Uses
- Machine tools and drive spindles
- Machines for processing metals and plastics
- Pumps, fans and compressors
More details
- Brand
- FAG
- Code
- CUINJ2304
- EAN13
- 4012801176880
- Manufacturer code
- NJ2304-E-XL-TVP2
