Description
FAG NUP 22XX Series Cylindrical Roller Bearings - Item No. NUP2215-E-XL-TVP2

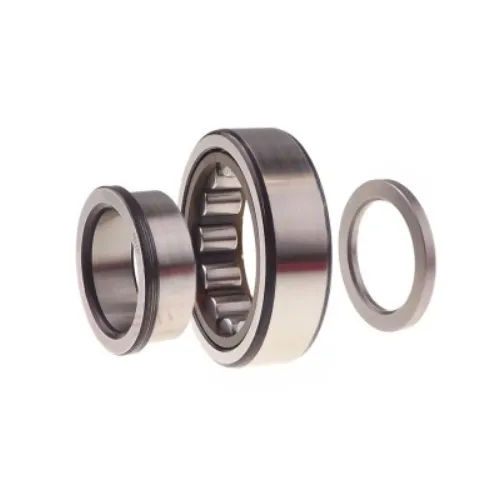

FAG (Schaeffler group) cylindrical roller bearings of the NUP 22XX series, type NUP: a single row of rollers with cage and solid rings. Type NUP has two flanges on the outer ring and, on the inner ring, one fixed flange plus a washer with a loose flange: it locks the shaft in both directions and is the fixed bearing, suited to alternating axial forces. The rings are separable and fitted with interference, so mounting and dismounting are easy; the cage prevents contact between the rollers. Reference item of the range: NUP2215-E-XL-TVP2.
Technical Specifications
- Type: Cylindrical roller bearing, single row, type NUP
- Series: NUP 22XX, sizes selectable among the variants
- Rings: outer with two flanges, inner with flange and washer
- Function: fixed bearing, axial guidance in both directions
- Cage: reinforced polyamide (TVP2) in one of the versions
- Capacity: very high radial load, high rigidity
- Item No.: NUP2215-E-XL-TVP2
- Brand: FAG (Schaeffler)
Applications and Uses
- Electric motors and industrial gearboxes
- Transmissions with heavy radial loads
- Shaft supports of large machines
More details
- Brand
- FAG
- Code
- CUINUP2210
- EAN13
- 4012801180214
- Manufacturer code
- NUP2210-E-XL-TVP2
