FAG NU 4XX series cylindrical roller bearings, type NU (Item No. NU415-XL-M1), Schaeffler group: a single row of rollers with cage, heavy radial loads, high rigidity and solid rings. Sizes can be selected among the variants.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

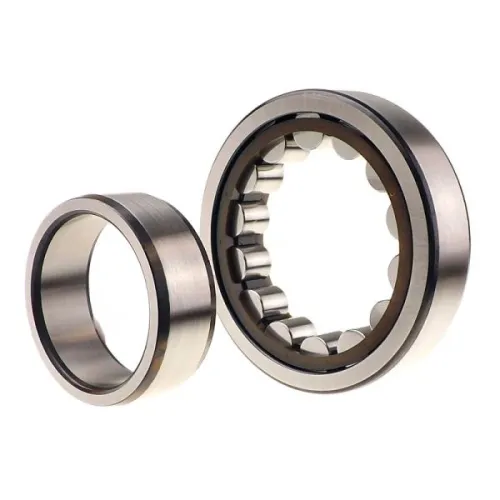

FAG NU 4XX Series Cylindrical Roller Bearings - Item No. NU415-XL-M1
The FAG (Schaeffler) NU 4XX series brings together type NU radial bearings with a single row of cylindrical rollers, with solid rings and rollers spaced by the cage. Thanks to the cage, rotation speeds can be higher than in full-complement roller versions. NU structure: two flanges on the outer ring, plain inner ring. No axial guidance, internal length compensation, typical use as the floating side of the shaft. For the same size, cylindrical roller bearings have higher basic load ratings than ball bearings, so they are chosen where radial loads are heavy. Reference item of the range: NU415-XL-M1.
Technical Specifications
- Construction: Single row of cylindrical rollers with cage, solid rings
- Type: NU, series NU 4XX
- Function: floating bearing, compensates for length
- Rings: outer with two flanges, inner plain
- Mounting: Separable rings, interference fit
- Cage: brass (M1), among the versions
- Item No.: NU415-XL-M1
- Brand: FAG (Schaeffler)
Applications and Uses
- Transmissions with heavy radial loads
- Shaft supports of large machines
- Machine tools and drive spindles
More details
- Brand
- FAG
- Code
- CUINU408
- EAN13
- 4026677192448
- Manufacturer code
- NU408-XL-M1
