PORTA

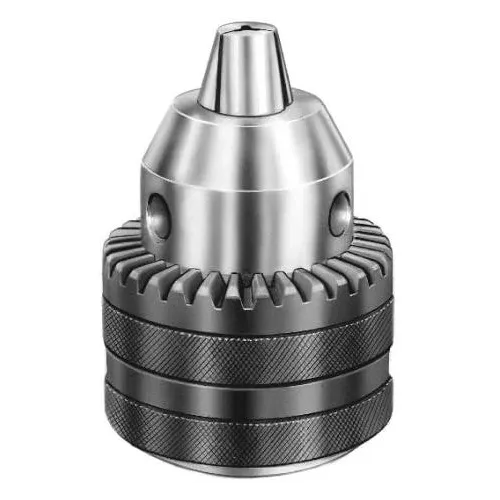

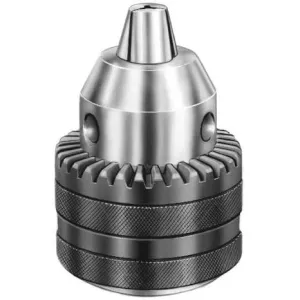

PORTA GEARED CHUCK — 1,5-13MM, B16/1/2"X20/3/8"X24/JACOBS MOUNTS, 8 VARIANTS

Code: MNA13B16
€51.50
VAT excluded: €42.21
Size : 1,5-13 B16
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

Porta Rack-Type Keyed Chuck with Key, Ranges 1.5-13 and 3-16 mm, 8 Mounts


Porta rack-type keyed chuck for those who want a secure grip on the bit in everyday work, on both hand-held drills and fixed machines. Clamping is done with the toothed key: the pinion meshes with the ring gear of the chuck and closes the jaws on the shank. The range includes eight versions divided into two clamping ranges. The 1.5-13 mm range is fitted with a B16 taper or Jacobs 6, or with a 1/2"x20 or 3/8" female thread; the 3-16 mm range, for larger-diameter bits, is available with DIN B16 and B18 tapers and with 1/2"x20 and 5/8"x16 female threads. Before choosing the version, check the mount of the current chuck or of the machine spindle; for data such as weight and the key matched to each version it is advisable to ask customer service for confirmation.

Technical Specifications

  • Type: Rack-type keyed chuck with toothed key
  • Clamping ranges: 1.5-13 mm and 3-16 mm
  • Mounts for 1.5-13 mm range: B16 taper, Jacobs 6, female 1/2"x20, female 3/8"
  • Mounts for 3-16 mm range: DIN B16 taper, DIN B18 taper, female 1/2"x20, female 5/8"x16
  • Versions: 8, selectable among the variants
  • Clamping: toothed key
  • Brand: PORTA

Applications and Uses

  • Machines with a B16, B18 or Jacobs 6 taper spindle
  • Drills with a 1/2"x20, 3/8" or 5/8"x16 threaded spindle
  • Replacing a worn chuck
  • Drilling with straight-shank bits up to 16 mm

More details

Brand
PORTA
Code
MNA13B16
Manufacturer code
A13B16
