Fervi bench drill item 0011 with belt transmission: 375 W motor, speeds from 620 to 2620 rpm, drilling up to Ø 13 mm in cast iron, 1-13 mm keyless chuck and 45 degree tilting table.

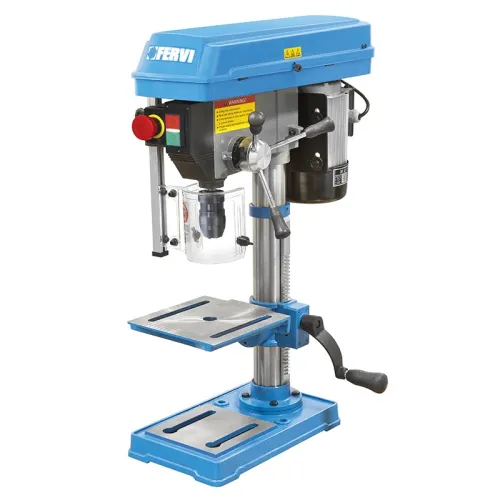

Bench Drill with Belt Transmission Fervi 0011 - Item No. 0011
Fervi item 0011 is a compact bench drill for small workshops and maintenance laboratories that need to drill, bore or counterbore small parts. The motor runs at constant speed and the speed is changed by moving the belts on the pulleys, over a range from 620 to 2620 rpm; the tool feed is manual. The 190 x 200 mm table is height-adjustable by rack and tilts ± 45°, while the on-board controls operate at 24 V on a separate circuit. The supply includes the 1-13 mm B16 keyless chuck with MT 2 taper. With a pilot hole it drills up to Ø 10 mm in S235JR steel and Ø 13 mm in cast iron; net weight 25 kg.
Technical Specifications
Type: Bench drill with belt transmission
Capacity with pilot hole: Ø 13 mm in cast iron, Ø 10 mm in S235JR steel
Chuck: keyless 1-13 mm B16, MT 2 taper
Spindle speed: 620-2620 rpm
Spindle stroke: 65 mm
Quill / column: Ø 40 / Ø 58 mm
Spindle-to-column distance: 130 mm
Table: 190 x 200 mm, tilting ± 45°
Motor: 230 V 50 Hz, 375 W
Overall size: 315 x 530 x 690 mm
Item No.: 0011
Brand: FERVI
Applications and Uses
Precision drilling at the bench in steel and cast iron
PORTA Morse taper arbor for connecting the drill chuck to the machine: CM1 to CM4 shank and B10, B12, B16, B18 or Jacobs J1 and J2 mount, in 16 combinations to choose among the variants according to machine and chuck.
KRINO HSS twist drill bit in hundredths sizes, size 9,75 for precision drilling. Available in various sizes.
