Fervi pillar drill item 0752 with belt transmission and 16 speeds: 0.75 kW motor, drilling up to Ø 20 mm in steel with pilot hole, MT 2 taper, 1-16 mm chuck included and 290 x 290 mm rotating, tilting table.

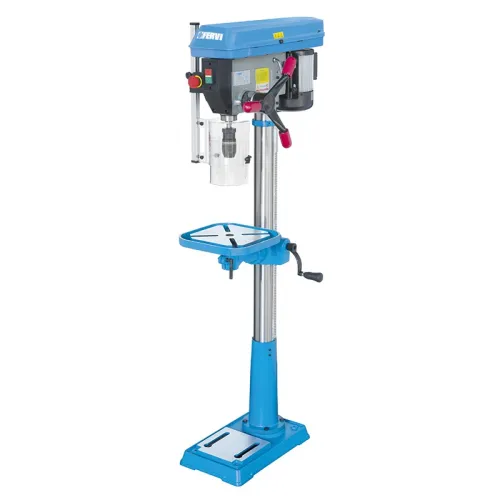

Pillar Drill with Belt Transmission Fervi 0752 - Item No. 0752
The Fervi pillar drill item 0752 is a machine for machine shops, metalwork shops and maintenance departments: it drills, bores and counterbores different materials, with the tool chosen according to the job. The 0.75 kW motor runs at constant speed and the spindle speed is changed by moving the belts on the pulley grooves, with 16 speeds available. The tool feed is manual, with a handwheel. With a pilot hole it reaches Ø 20 mm in S235JR steel and Ø 25 mm in cast iron; in continuous drilling it works up to Ø 16 mm. The 290 x 290 mm table rotates and tilts ± 45°, and the 1-16 mm keyless chuck with MT 2 taper is included.
Technical Specifications
Type: Pillar drill with belt transmission
Capacity with pilot hole: Ø 25 mm in cast iron, Ø 20 mm in S235JR steel
Continuous drilling: Ø 16 mm
Morse taper: MT 2
Chuck: keyless 1-16 mm, included
Speeds: 16, with belt change
Spindle stroke: 80 mm
Quill / column: Ø 47 / Ø 80 mm
Table: 290 x 290 mm, rotating, tilting ± 45°
Motor: 230 V 50 Hz, 0.75 kW
Item No.: 0752
Brand: FERVI
Applications and Uses
Drilling, boring and counterboring in a machine shop
PORTA Morse taper arbor for connecting the drill chuck to the machine: CM1 to CM4 shank and B10, B12, B16, B18 or Jacobs J1 and J2 mount, in 16 combinations to choose among the variants according to machine and chuck.
KRINO HSS twist drill bit in hundredths sizes, size 9,75 for precision drilling. Available in various sizes.
