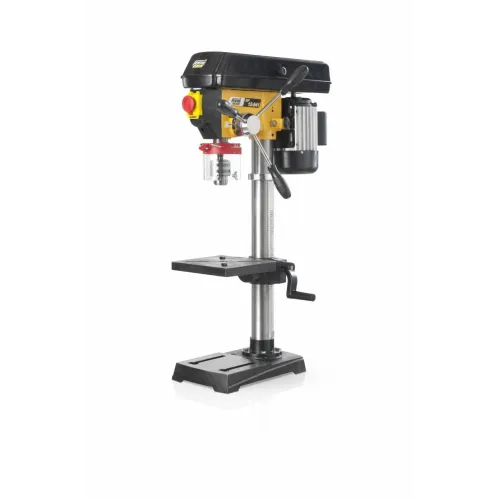

Femi DP 12-941 Job Line bench drill press, item no. 8086124: 460 W motor, 12 speeds from 230 to 2470 rpm, 3-16 mm keyed chuck, 60 mm column and tilting work table. Weight 27 kg.
The Femi DP 12-941, item no. 8086124, is a bench drill press from the Job Line range, compact but with workshop performance. The 460 W single-phase motor drives the chuck with 12 speeds, from 230 to 2470 rpm, to be chosen according to the bit. The 3 to 16 mm keyed chuck has a B16 fitting and 60 mm of travel; the 60 mm column supports a 202 x 197 mm tilting work table, which is adjusted in height with the rack. The upper cover has a safety microswitch and the chuck is covered by a guard. At 27 kg it stays stable on the bench. Supplied with the chuck key and the ergonomic handle. The catalogue name indicates a height of 840 mm, Femi 845 mm for code 8086124: the height is to be confirmed before ordering.
Technical Specifications
Type: Bench drill press
Motor: 460 W single phase, 1400 rpm
Spindle speeds: 12, from 230 to 2470 rpm
Chuck: keyed, 3-16 mm, B16 fitting
Drilling capacity: 16 mm
Spindle travel: 60 mm
Column: diameter 60 mm, spindle-to-column distance 126 mm
Work table: 202 x 197 mm, tilting
Height: to be confirmed (840 mm in the name, 845 mm for the code)
PORTA Morse taper arbor for connecting the drill chuck to the machine: CM1 to CM4 shank and B10, B12, B16, B18 or Jacobs J1 and J2 mount, in 16 combinations to choose among the variants according to machine and chuck.
KRINO HSS twist drill bit in hundredths sizes, size 9,75 for precision drilling. Available in various sizes.
