Femi Digimax 16F Pro floor-standing drill press: 1100 W motor, variable speed 440-2100 rpm with digital display, 1-16 mm keyless chuck, drilling up to 20 mm and 80 mm column.

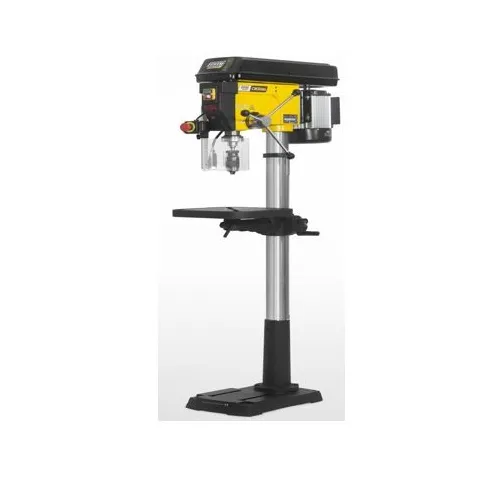

Femi Digimax 16F Pro Floor-Standing Drill Press with Display
The Femi Digimax 16F Pro is a floor-standing drill press for workshops that continuously drill pieces of different sizes. The speed varies continuously from 440 to 2100 rpm with an external control and the digital display shows the actual rpm. The 1100 W motor at 230 V drives a 1 to 16 mm keyless chuck; the 80 mm column supports a 580 x 420 mm table and drilling reaches 20 mm. A graduated rod for repeated depth, a light on the work area and a microswitch on the chuck guard complete the machine, which weighs 75 kg. The catalogue name indicates a height of 1700 mm and code 8086139, Femi 1635 mm for item 8086138: height and code are to be confirmed before ordering.
Technical Specifications
Type: Floor-standing drill press
Motor: 1100 W, 230 V single phase
Speed: variable from 440 to 2100 rpm, digital display
Speed control: external control
Chuck: keyless, 1-16 mm
Drilling capacity: 20 mm
Column: diameter 80 mm
Work table: 580 x 420 mm
Height: to be confirmed (1700 mm in the name, 1635 mm for Femi)
Weight: 75 kg
Item No.: 8086138 (to be confirmed: 8086139 in the catalogue)
Brand: FEMI
Applications and Uses
Continuous drilling in the machine shop and fabrication
PORTA Morse taper arbor for connecting the drill chuck to the machine: CM1 to CM4 shank and B10, B12, B16, B18 or Jacobs J1 and J2 mount, in 16 combinations to choose among the variants according to machine and chuck.
KRINO HSS twist drill bit in hundredths sizes, size 9,75 for precision drilling. Available in various sizes.
