SOGIMUT

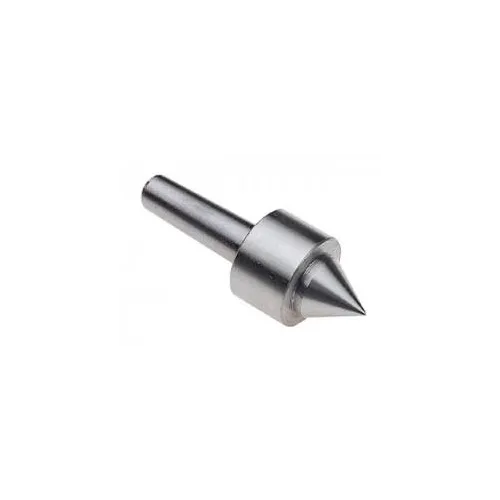

MORSE TAPER LIVE CENTRE PORTA — 5 SIZES: CM1/CM2/CM3/CM4/CM5

Code: MNM1
€59.80
VAT excluded: €49.02
Size : CM1
In stock 1 piece in stock Ships in 24/48 hours

Description

PORTA Revolving Centre with Morse Taper Shank - Sizes from CM1 to CM5


PORTA revolving centre to be inserted, with its Morse taper shank, into the lathe tailstock. It supports the free end of the workpiece during machining: it is the accessory used to steady long, slender workpieces, which under the thrust of the tool would tend to flex or vibrate. Before bringing it up, a centre hole is made in the workpiece with the special centre drill, and the point rests in it; the front part turns together with the workpiece. The size is chosen according to the tailstock socket of the machine: five versions are available, from CM1 to CM5. Bearings, point angle and permitted load are not stated here, as no manufacturer data are available: ask our customer service.

Technical Specifications

  • Type: revolving centre for lathe
  • Mount: Morse taper shank
  • Available sizes: CM1, CM2, CM3, CM4, CM5 (selectable among the variants)
  • Support: in the centre hole made in the workpiece
  • Item No.: series 331/S
  • Brand: PORTA

Applications and Uses

  • Supporting long, slender workpieces in turning
  • Reducing deflection and vibration of the workpiece
  • Turning and grinding work in the machine shop

More details

Brand
SOGIMUT
Code
MNM1
Manufacturer code
331/S-CM1
