FLOW REGULATOR RFU

Terminal module

Mod. CNVL-*H

Camozzi Hinge Mod C

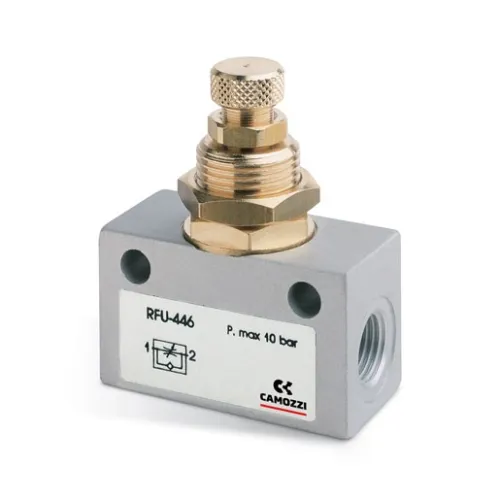

The one-way flow regulators are available with connections M5, G1/8, G1/4, G3/8 and G1/2.

The G1/8 and G1/4 connections are available with two different types of adjustment (see diagrams).

The M5, G3/8 and G1/2 connections, on the other hand, have only one type of adjustment.

All models can be mounted equally well on a panel, on cylinders or on a wall.

To choose the most suitable model, it is recommended to:

1. Calculate the air quantity in Nl/min

2. Determine the time in which the cylinder must complete its stroke;

3. Check the flow rate diagrams.

For mounting on valve.

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170.

Flange mounting

Mod. E

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

Mod. U

UNI EN ISO 4035

Material:

galvanised steel

CAMOZZI CLEVIS FOR CYLINDER MOD. G

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

For mounting on single-acting and double-acting cylinders.

Adjustment by means of a manually operated knob.

Connections: M5, G1/8, G1/4 and G3/8.

M5 connection: swivelling brass body
