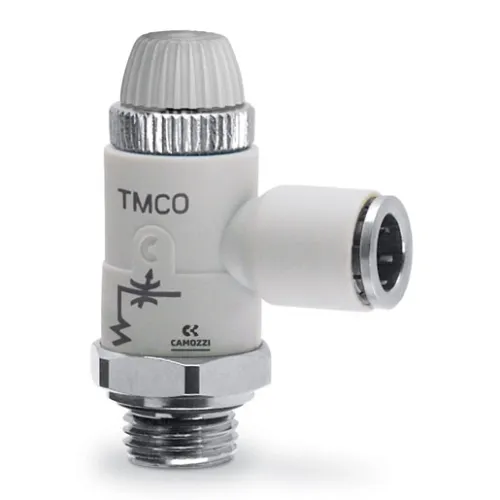

CAMOZZI REGULATING VALVE TMCO

The circuit selector Mod. SCS-668-06 allows two signals coming alternately from two different points to be channelled to the same point.

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

Accessory for fixing the inductive sensor that detects the presence of the tool.

Supplied with: fixing screws

Sensor not included in the kit.

For mounting on valve.

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170.

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

Flange mounting

Mod. D

Camozzi Hinge Mod C

For mounting on valves.

Adjustment by means

of a screwdriver.

Mod. U

UNI EN ISO 4035

Material:

galvanised steel

Threaded version sizes: M5, G1/8, G1/4, G3/8, G1/2, G3/4, G1

Tube/Tube version sizes: Ø4, Ø6, Ø8, Ø10, Ø12

The VNR series one-way valves are available in the threaded variant or with integrated fitting; the type of construction allows low operating pressures.

Flange mounting

Mod. E

The one-way flow regulators are available with connections M5, G1/8, G1/4, G3/8 and G1/2.

The G1/8 and G1/4 connections are available with two different types of adjustment (see diagrams).

The M5, G3/8 and G1/2 connections, on the other hand, have only one type of adjustment.

All models can be mounted equally well on a panel, on cylinders or on a wall.

To choose the most suitable model, it is recommended to:

1. Calculate the air quantity in Nl/min

2. Determine the time in which the cylinder must complete its stroke;

3. Check the flow rate diagrams.

Single sub-base with side outlets ISO 5599/1

For mounting on valve.

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170.

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!
