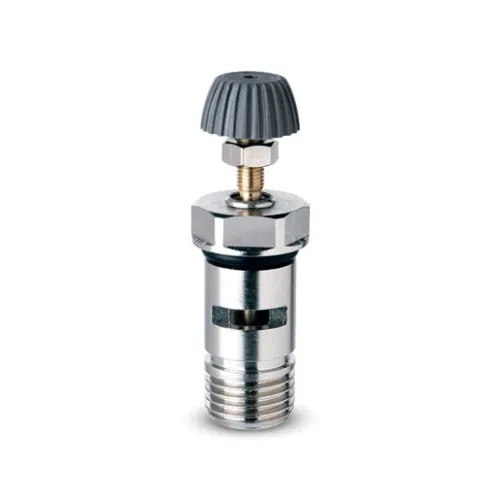

CAMOZZI REGULATING VALVE MVU

CAMOZZI CLEVIS FOR CYLINDER MOD. G

Since the speed of a cylinder is regulated by restricting the air of the chamber that is exhausting, it is recommended to connect the threaded port of valve 1 to the cylinder inlet and port 2 to the valve user port.

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

One-way flow regulators

for mounting on single-acting

and double-acting cylinders.

Adjustment by means

of a hexagon key or a manually

operated knob.

Connections G1/8, G1/4, G3/8, G1/2

The one-way flow regulators are available with connections M5, G1/8, G1/4, G3/8 and G1/2.

The G1/8 and G1/4 connections are available with two different types of adjustment (see diagrams).

The M5, G3/8 and G1/2 connections, on the other hand, have only one type of adjustment.

All models can be mounted equally well on a panel, on cylinders or on a wall.

To choose the most suitable model, it is recommended to:

1. Calculate the air quantity in Nl/min

2. Determine the time in which the cylinder must complete its stroke;

3. Check the flow rate diagrams.

Intermediate hinge mounting Mod. F

Two-way flow regulators.

Adjustment by means

of a hexagon key or a manually operated knob.

Connections G1/8, G1/4, G3/8, G1/2

For mounting on single-acting and double-acting cylinders.

Adjustment by means of a manually operated knob.

Connections: M5, G1/8, G1/4 and G3/8.

M5 connection: swivelling brass body

One-way (VBU) and two-way (VBO) valves

Connections G1/8, G1/4, G3/8 and G1/2

Tube diameters: 6, 8, 10, 12 mm

These one-way and two-way blocking valves have been designed to allow direct mounting on cylinders.

They can be used as high-flow valves for blowing, cleaning parts and filling volumes.

For these applications it is recommended to connect the supply to connection 2 (the one with the male thread).

Direct mounting on fluid distribution and control blocks is also possible.

Terminal module

Mod. CNVL-*H

The circuit selector Mod. SCS-668-06 allows two signals coming alternately from two different points to be channelled to the same point.

Threaded version sizes: M5, G1/8, G1/4, G3/8, G1/2, G3/4, G1

Tube/Tube version sizes: Ø4, Ø6, Ø8, Ø10, Ø12

The VNR series one-way valves are available in the threaded variant or with integrated fitting; the type of construction allows low operating pressures.

Flange mounting

Mod. D

Adjustable diaphragm pressure switches

Accessory for fixing the inductive sensor that detects the presence of the tool.

Supplied with: fixing screws

Sensor not included in the kit.

Flange mounting

Mod. E
