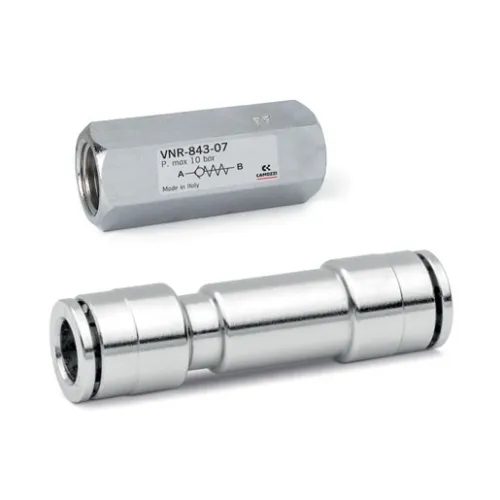

CAMOZZI ONE-WAY VALVE VNR

Since the speed of a cylinder is regulated by restricting the air of the chamber that is exhausting, it is recommended to connect the threaded port of valve 1 to the cylinder inlet and port 2 to the valve user port.

Accessory for mounting valves on the cylinder

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170; 2905.

CAMOZZI CLEVIS FOR CYLINDER MOD. G

Mod. U

UNI EN ISO 4035

Material:

galvanised steel

The circuit selector Mod. SCS-668-06 allows two signals coming alternately from two different points to be channelled to the same point.

One-way (VBU) and two-way (VBO) valves

Connections G1/8, G1/4, G3/8 and G1/2

Tube diameters: 6, 8, 10, 12 mm

These one-way and two-way blocking valves have been designed to allow direct mounting on cylinders.

They can be used as high-flow valves for blowing, cleaning parts and filling volumes.

For these applications it is recommended to connect the supply to connection 2 (the one with the male thread).

Direct mounting on fluid distribution and control blocks is also possible.

Rear male hinge mounting Mod. L

Silenced exhaust regulator

Adjustable diaphragm pressure switches

Foot mounting mod B

Material of feet and ring nut: galvanised steel

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

Single sub-base with side outlets ISO 5599/1

MINI CYLINDER MOUNTING E

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

Model ZC

CETOP RP 107P

Material:

aluminium

Supplied with:

1x male bracket
