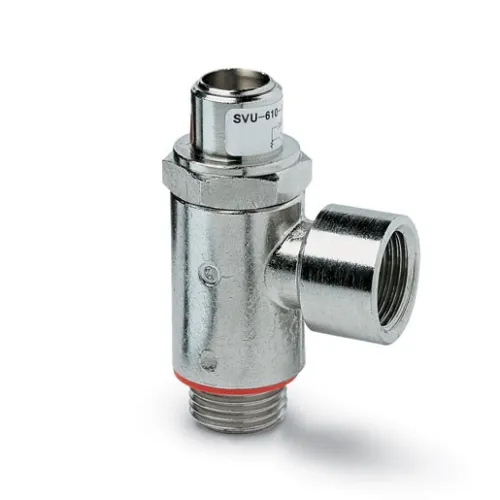

CAMOZZI FLOW RATE REGULATING VALVE MOD.SVU

For mounting on valve.

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170.

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

The circuit selector Mod. SCS-668-06 allows two signals coming alternately from two different points to be channelled to the same point.

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

For mounting on single-acting and double-acting cylinders.

Adjustment by means of a manually operated knob.

Connections: M5, G1/8, G1/4 and G3/8.

M5 connection: swivelling brass body

One-way (VBU) and two-way (VBO) valves

Connections G1/8, G1/4, G3/8 and G1/2

Tube diameters: 6, 8, 10, 12 mm

These one-way and two-way blocking valves have been designed to allow direct mounting on cylinders.

They can be used as high-flow valves for blowing, cleaning parts and filling volumes.

For these applications it is recommended to connect the supply to connection 2 (the one with the male thread).

Direct mounting on fluid distribution and control blocks is also possible.

Since the speed of a cylinder is regulated by restricting the air of the chamber that is exhausting, it is recommended to connect the threaded port of valve 1 to the cylinder inlet and port 2 to the valve user port.

CAMOZZI MOUNTING BRACKET MOD. C114 ST

Mod. U

UNI EN ISO 4035

Material:

galvanised steel

Intermediate hinge mounting Mod. F

Silenced exhaust regulator

Flange mounting

Mod. E

Accessory for fixing the inductive sensor that detects the presence of the tool.

Supplied with: fixing screws

Sensor not included in the kit.
