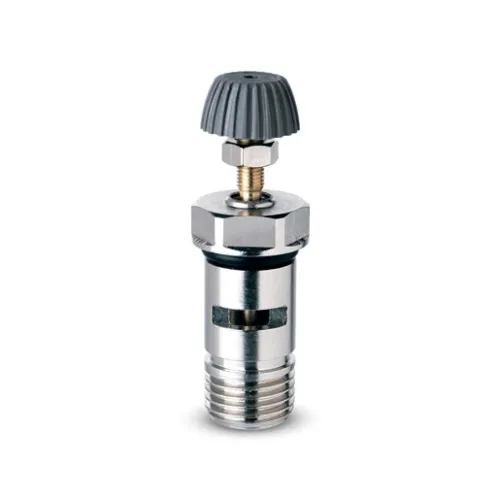

CAMOZZI FLOW RATE REGULATING VALVE MCO

Series name MC

Component 3/2-WAY VALVE

Construction type Electro-pneumatic control

Size G3/8 - G1/2

Connections G3/8

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

Materials:

Clamp in engineering polymer, O-ring in NBR, nuts and screws in galvanised steel.

Foot mounting mod B

Material of feet and ring nut: galvanised steel

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

For mounting on single-acting and double-acting cylinders.

Adjustment by means of a manually operated knob.

Connections: M5, G1/8, G1/4 and G3/8.

M5 connection: swivelling brass body

The one-way flow regulators are available with connections M5, G1/8, G1/4, G3/8 and G1/2.

The G1/8 and G1/4 connections are available with two different types of adjustment (see diagrams).

The M5, G3/8 and G1/2 connections, on the other hand, have only one type of adjustment.

All models can be mounted equally well on a panel, on cylinders or on a wall.

To choose the most suitable model, it is recommended to:

1. Calculate the air quantity in Nl/min

2. Determine the time in which the cylinder must complete its stroke;

3. Check the flow rate diagrams.

Single sub-base with side outlets ISO 5599/1

Accessory for mounting valves on the cylinder

Base plates for 210,220

For mounting on valves.

Adjustment by means

of a screwdriver.

Foot mounting mod B

Material of feet and ring nut: galvanised steel

CAMOZZI CLEVIS FOR CYLINDER MOD. G

Threaded version sizes: M5, G1/8, G1/4, G3/8, G1/2, G3/4, G1

Tube/Tube version sizes: Ø4, Ø6, Ø8, Ø10, Ø12

The VNR series one-way valves are available in the threaded variant or with integrated fitting; the type of construction allows low operating pressures.
