CAMOZZI CIRCUIT SELECTOR VALVE SCS

Code: CLSCS06
€15.10
VAT excluded: €12.38
Size : SCS 06
In stock 1 piece in stock Ships in 24/48 hours

Description

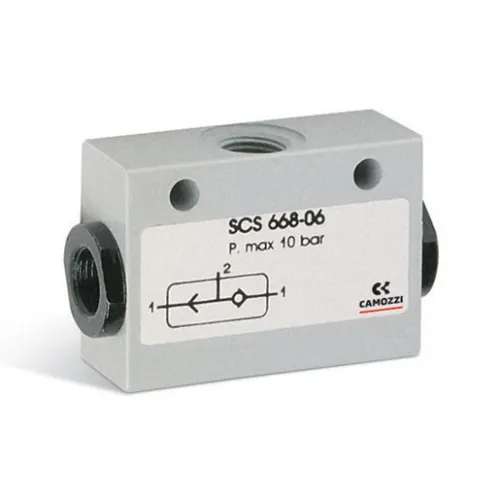

Pneumatic Circuit Selector (OR Function) Camozzi G1/8 - Item No. SCS-668-06


Camozzi SCS-668-06 circuit selector, an automatic valve that performs the OR logic function: it receives two pneumatic signals coming alternately from two different points and brings both to the same point, closing the unpowered inlet each time. It is used for example when a cylinder or a valve has to be controlled by both a push button and a pedal, or from two workstations. Poppet construction with aluminium body, brass bushing, Delrin poppet and NBR seals. G1/8 ports, flow 800 Nl/min, minimum operating pressure 0.2 bar and maximum 10 bar. It is fixed to a wall with two through holes.

Technical Specifications

  • Type: Circuit selector (OR function)
  • Ports: G1/8
  • Flow: 800 Nl/min
  • Pressure: minimum operating 0.2 bar, maximum 10 bar
  • Materials: Aluminium body, brass bushing, Delrin poppet, NBR
  • Temperature: 0 to 80 °C (from -20 °C with dry air)
  • Mounting: On a wall with 2 through holes
  • Item No.: SCS-668-06
  • Brand: CAMOZZI

Applications and Uses

  • Control from two different workstations
  • Pneumatic logic circuits
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CLSCS06
Manufacturer code
SCS-668-06
