UNIVER AC-N8500 SOLENOID VALVE

Code: CLACN8500
€73.00
VAT excluded: €59.84
In stock 9 pieces in stock Ships in 24/48 hours

Description

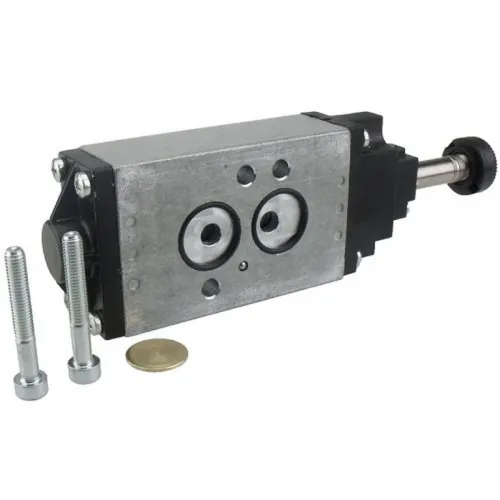

NAMUR 5/2 Solenoid Valve Univer G1/4 Monostable - Item No. AC-N8500


Univer AC-N8500 solenoid valve, 5/2 distributor with NAMUR interface to VDI/VDE 3845, designed to control rotary pneumatic actuators in fluid distribution and control systems. The control is electric, single impulse, with pneumo-mechanical spring return; the switching is mixed spool-poppet. Ports 1-3-5 G1/4, outlets 2-4 on the NAMUR interface, nominal diameter 8 mm and nominal flow of 1200 Nl/min. It works from 2.3 to 10 bar with filtered air, lubricated or not. Zamak body, screw-type manual override. The pilot solenoid coil with its connector is ordered separately.

Technical Specifications

  • Type: NAMUR 5/2 electrically operated distributor
  • Interface: NAMUR VDI/VDE 3845
  • Return: Pneumo-mechanical spring (monostable)
  • Ports: G1/4 (1-3-5)
  • Nominal flow: 1200 Nl/min
  • Operating pressure: 2.3 to 10 bar
  • Ambient temperature: -10 to 45 °C
  • Body: Zamak
  • Supply: Without coil, connector and ring nut
  • Item No.: AC-N8500
  • Brand: UNIVER

Applications and Uses

  • Control of rotary pneumatic actuators
  • Direct mounting on NAMUR interface
  • Fluid treatment and distribution systems

More details

Code
CLACN8500
Manufacturer code
AC-N8500
