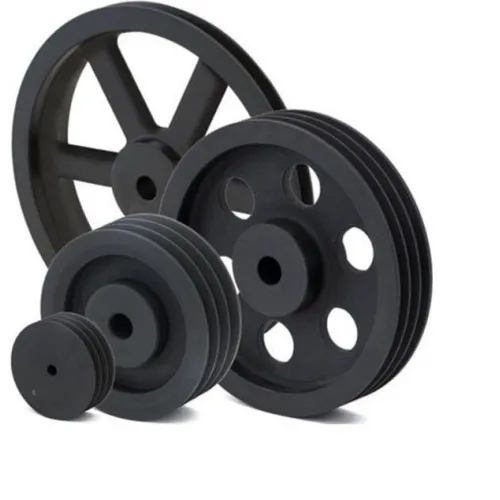

CAST IRON MONOBLOCK PULLEY SECTION B 6 GROOVES

Code: PU3006B
€150.20
VAT excluded: €123.11
Size : 300 6B
In stock 1 piece in stock Ships in 24/48 hours

Description

One-piece Cast Iron Pulley, B Section, 6 Grooves - Item No. PT300SPB6


One-piece cast iron V-pulley with solid hub and 6 grooves, B section: it takes B and SPB belts. The groove is made according to DIN 2211 - ISO 4183, with numerically controlled machining and an angle of 34 or 38 degrees depending on the pitch diameter. Made of DIN 1691 GG20 - GG25 cast iron, with a surface treatment that protects it from oxidation, the pulley works at up to 35 m/s peripheral speed. The pitch diameter is 300 mm. The bore is to be made in the workshop on the solid hub; the manufacturer does not balance them, precisely because the bore is not finished.

Technical Specifications

  • Type: one-piece PT V-pulley with solid hub
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: B, B and SPB belts
  • Number of grooves: 6
  • Pitch diameter: 300 mm
  • Grooves: according to DIN 2211 - ISO 4183
  • Bore: unfinished, to be machined on the solid hub
  • Maximum peripheral speed: 35 m/s
  • Item No.: PT300SPB6
  • Brand: SIT

Applications and Uses

  • Electric motors, compressors and pumps
  • Agricultural machinery and processing plants
  • Fans and extractors

More details

Brand
SIT
Code
PU3006B
Manufacturer code
PT300SPB6
