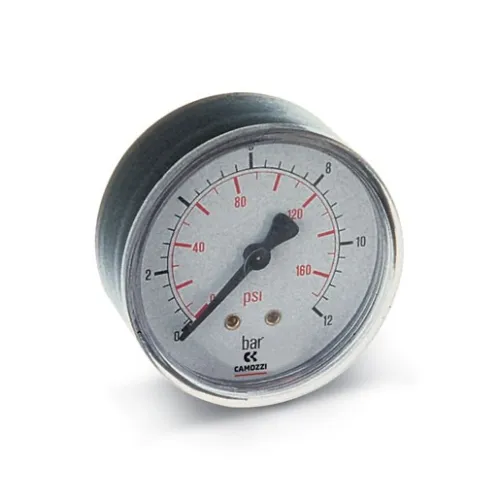

AIR PRESSURE GAUGE 0-12 bar 1/8 REAR CONNECTION M040

Code: CLM043P12
€7.60
VAT excluded: €6.23
Size : D. 40 - 1/8"
In stock 28 pieces in stock Ships in 24/48 hours

Description

Rear Connection Pressure Gauge Camozzi 0-12 bar - Item No. M043-P12 / M053-P12 / M063-P12


Camozzi pressure gauge for compressed air with rear connection, 0 to 12 bar scale, for regulators, filter-regulators and pneumatic cabinets. The tapered threaded connection at the back allows it to be mounted directly on the hole of the regulator, with the dial facing forward and easy to read; it is tightened with a 14 mm spanner. Variants M043-P12 and M053-P12 with R1/8 port and a more compact dial, and M063-P12 with 63 mm dial and R1/4 port. Camozzi recommends working at constant pressure within three quarters of full scale and without peaks beyond full scale. Choose the size among the variants according to the port of the regulator.

Technical Specifications

  • Type: Pressure gauge for compressed air, rear connection
  • Scale: 0-12 bar
  • Port: R1/8 (M043, M053) or R1/4 (M063), among the variants
  • Dial: Ø63 mm for M063-P12
  • Mounting spanner: 14 mm
  • Item No.: M043-P12 / M053-P12 / M063-P12
  • Brand: CAMOZZI

Applications and Uses

  • Pressure regulators and filter-regulators
  • Pneumatic cabinets and systems
  • Test benches and compressors

More details

Brand
CAMOZZI
Code
CLM043P12
Manufacturer code
M043-P12

Attachments

Recommended accessories and spare parts

CAMOZZI NIPPLE ART. 2501

€2.09
AVAILABLE
Availability: 24 In stock

Camozzi Mod. 2501 metric-parallel nipple: double male with equal parallel G threads, in nickel-plated brass, to join two female threaded components. Series 2000. Sizes 1/8 to 1/2 among the variants.

CAMOZZI NIPPLE ART. 2510

€1.78
AVAILABLE
Availability: 132 In stock

Camozzi Mod. 2510 tapered reducing nipple: double male with tapered R threads of different sizes, in nickel-plated brass, to connect two female ports of different diameter. Series 2000. Sizes among the variants.

Reviews (0)
No customer reviews for the moment.

11 other products in the same category:

PRESSURE GAUGE M063 R 12 0-12 BAR

€8.60
AVAILABLE
Availability: 9 In stock

Camozzi M063-R12 pressure gauge for compressed air: Ø63 mm dial, 1/4" radial connection, 0-12 bar scale, accuracy class 1.6. For filter-regulator units and pneumatic lines.
